Rear Combination Light Removal and Installation

REAR COMBINATION LIGHT REMOVAL AND INSTALLATION

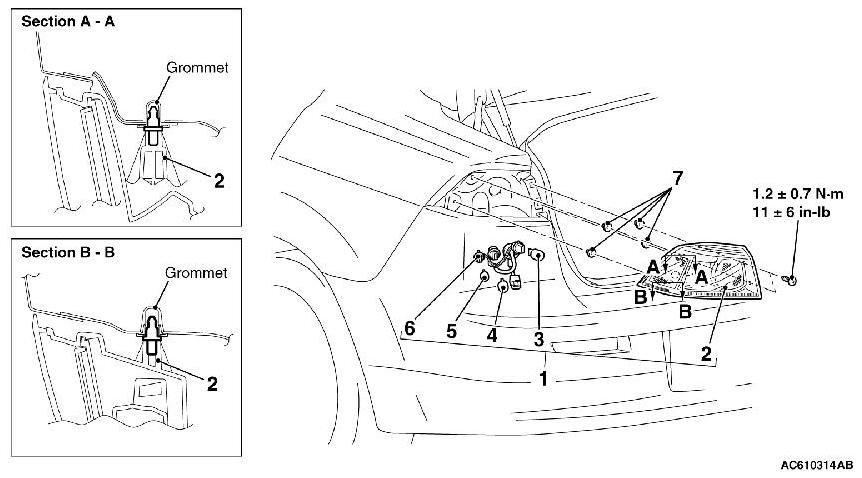

[LANCER]

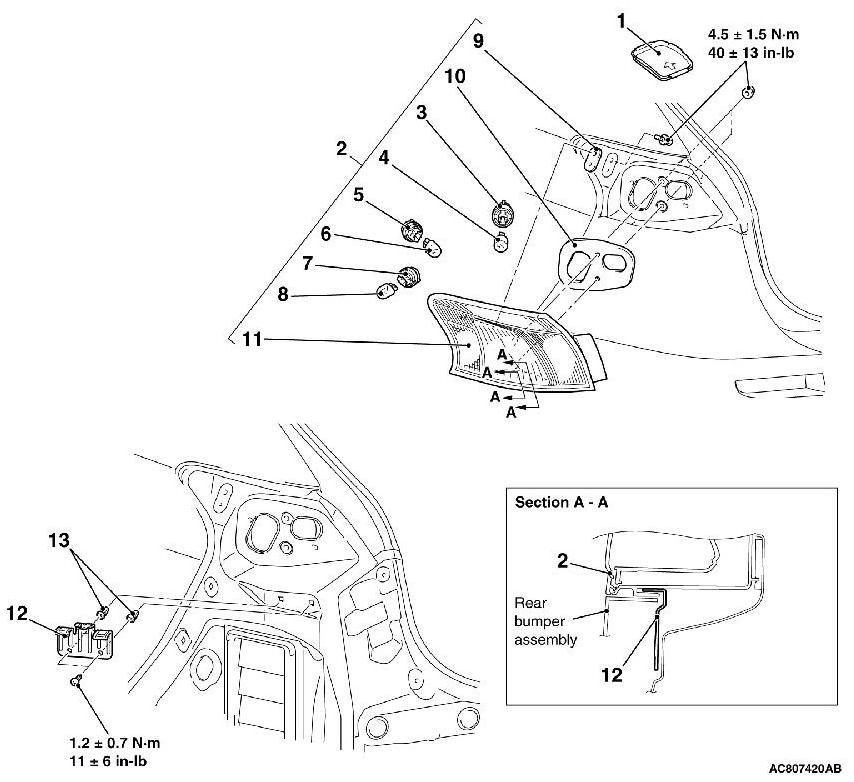

[LANCER SPORTBACK]









REMOVAL SERVICE POINT

[[A]]

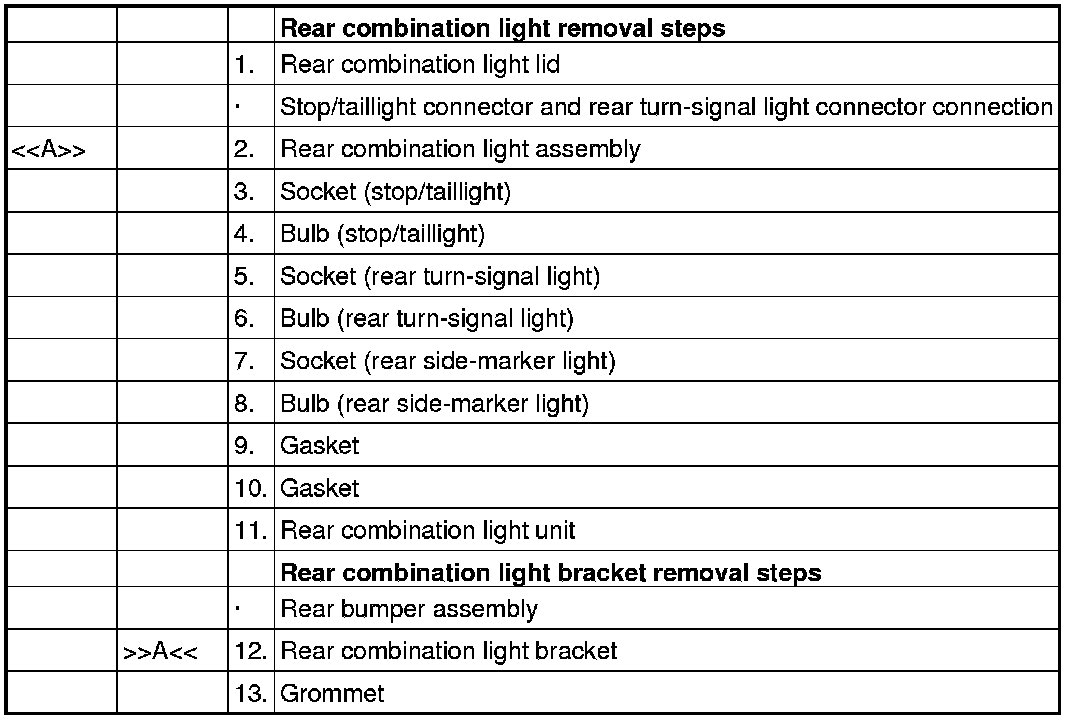

REAR COMBINATION LIGHT ASSEMBLY REMOVAL

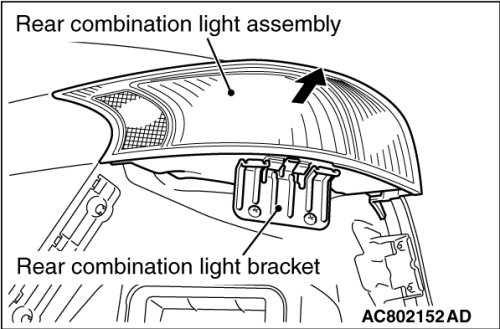

Remove the rear combination light assembly by pulling it toward a diagonal rear direction.

INSTALLATION SERVICE POINT

]]A[[
REAR COMBINATION LIGHT BRACKET INSTALLATION

1. Temporarily fix the rear combination light bracket.

2. Install the rear combination light assembly to the specified torque.

3. Install the rear combination light bracket to the specified torque.
