Horn: Service and Repair

REMOVAL AND INSTALLATION

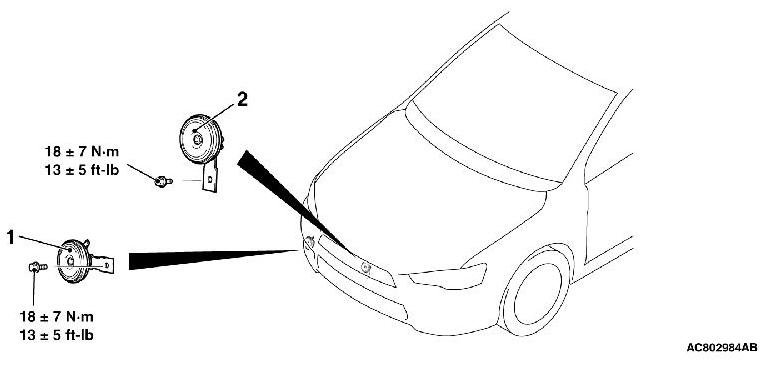

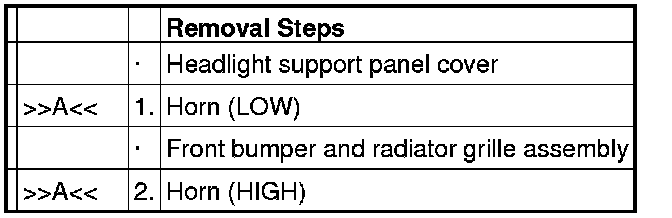

[EXCEPT RALLIART]









INSTALLATION SERVICE POINT

]]A[[ HORN (LOW)/HORN (HIGH) INSTALLATION

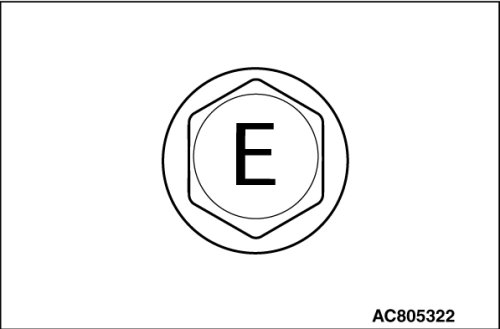

Use the ground bolts as the mounting bolts for horn (LOW) and horn (HIGH). The ground bolts have "E" mark on the bolt heads.

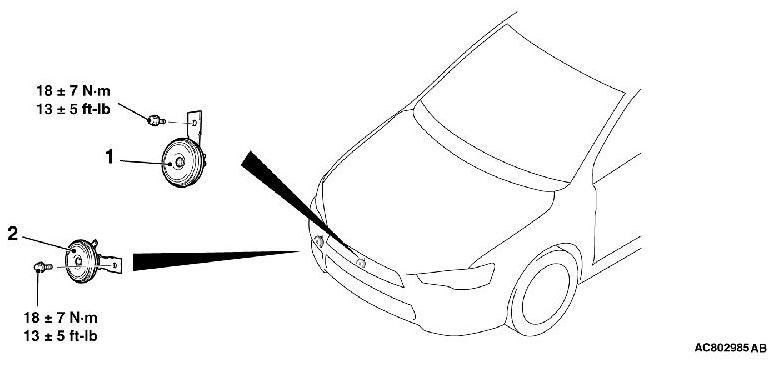

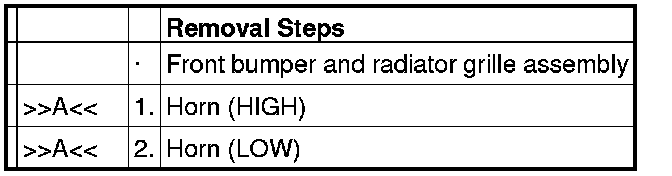

[RALLIART]









INSTALLATION SERVICE POINT

]]A[[ HORN (LOW)/HORN (HIGH) INSTALLATION





Use the ground bolts as the mounting bolts for horn (LOW) and horn (HIGH). The ground bolts have "E" mark on the bolt heads.
