Symptom Troubleshooting Sequence

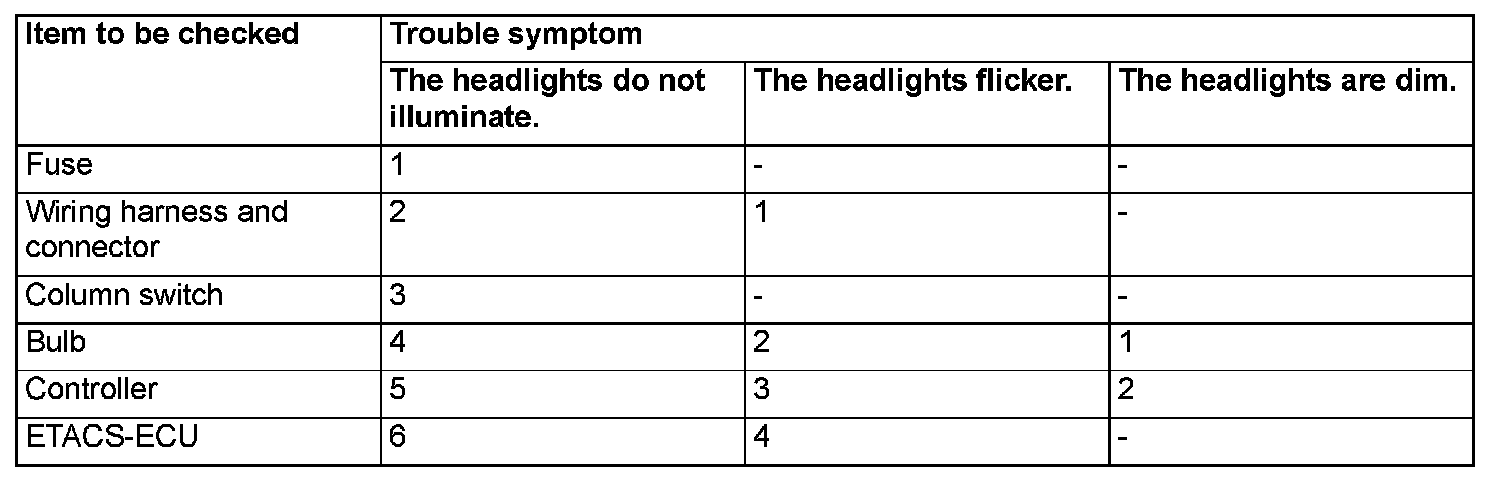

SYMPTOM CHART

Discharge Bulb Type Headlight







NOTE:
1. The numbers indicate the sequence in which the component is checked.
2. For the troubleshooting of other than the above, refer to Trouble Symptom Chart. Symptom Chart
3. If ETACS-ECU fails, only the low-beam headlights will illuminate as a fail-safe measure.
