Headlamp Bulb: Service and Repair

REPLACE THE BULB

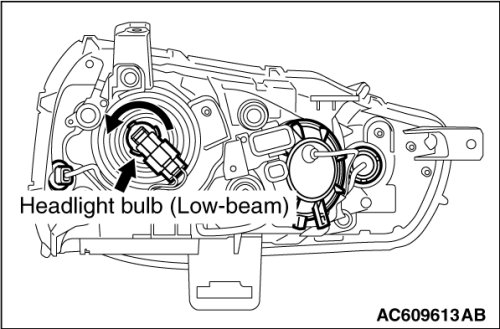

HEADLIGHT BULB (LOW-BEAM) REPLACEMENT [VEHICLES WITHOUT DISCHARGE HEADLIGHT]

CAUTION:
Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.





Disconnect the connector, and twist the headlight bulb (low-beam) to remove.

HEADLIGHT BULB (HIGH-BEAM) REPLACEMENT [VEHICLES WITHOUT DISCHARGE HEADLIGHT]

CAUTION:
Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.

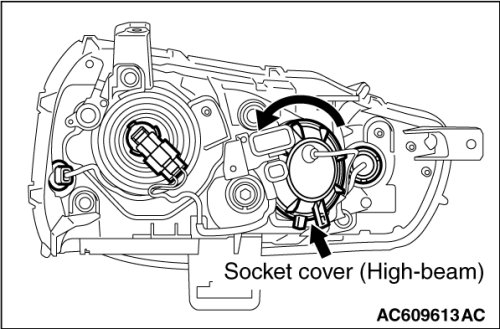

1. Twist the socket cover to remove.

2. Disconnect the connector, and twist the headlight bulb (high-beam) to remove.

DAYTIME RUNNING LIGHT BULB REPLACEMENT [VEHICLES WITH DISCHARGE HEADLIGHT]





3. Twist the socket cover to remove.

4. Twist the daytime running light socket to remove it.

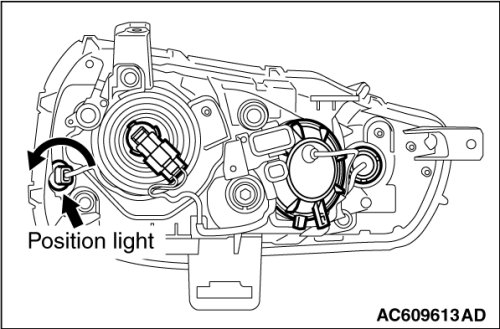

POSITION LIGHT BULB REPLACEMENT





Disconnect the connector, and twist the position light socket to remove it.

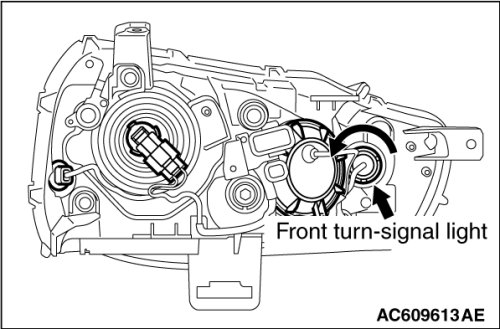

FRONT TURN-SIGNAL LIGHT BULB REPLACEMENT





Disconnect the connector, and twist the front turn-signal light socket to remove it.
