Condenser HVAC: Service and Repair

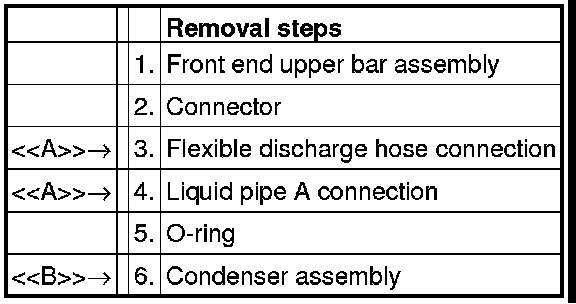

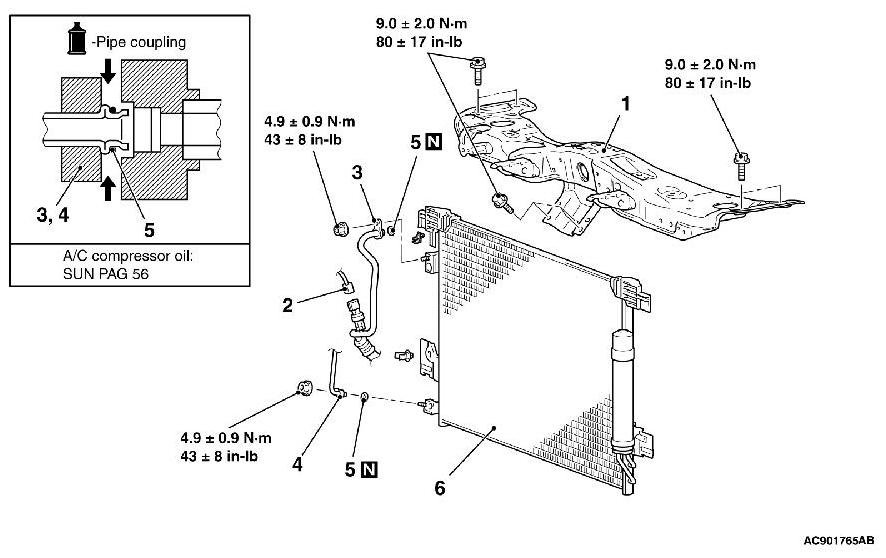

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINTS

[[A]]
FLEXIBLE SUCTION HOSE AND LIQUID PIPE A DISCONNECTION

CAUTION:
As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and condenser assembly nipples.

[[B]]

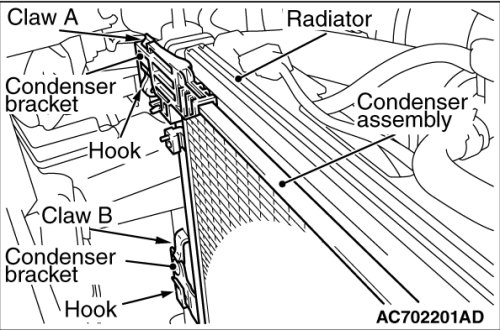

CONDENSER ASSEMBLY DISCONNECTION





1. Lift the condenser while pressing the claw B.
2. Lift the condenser while pressing the claw A and remove it.
