Muffler: Service and Repair

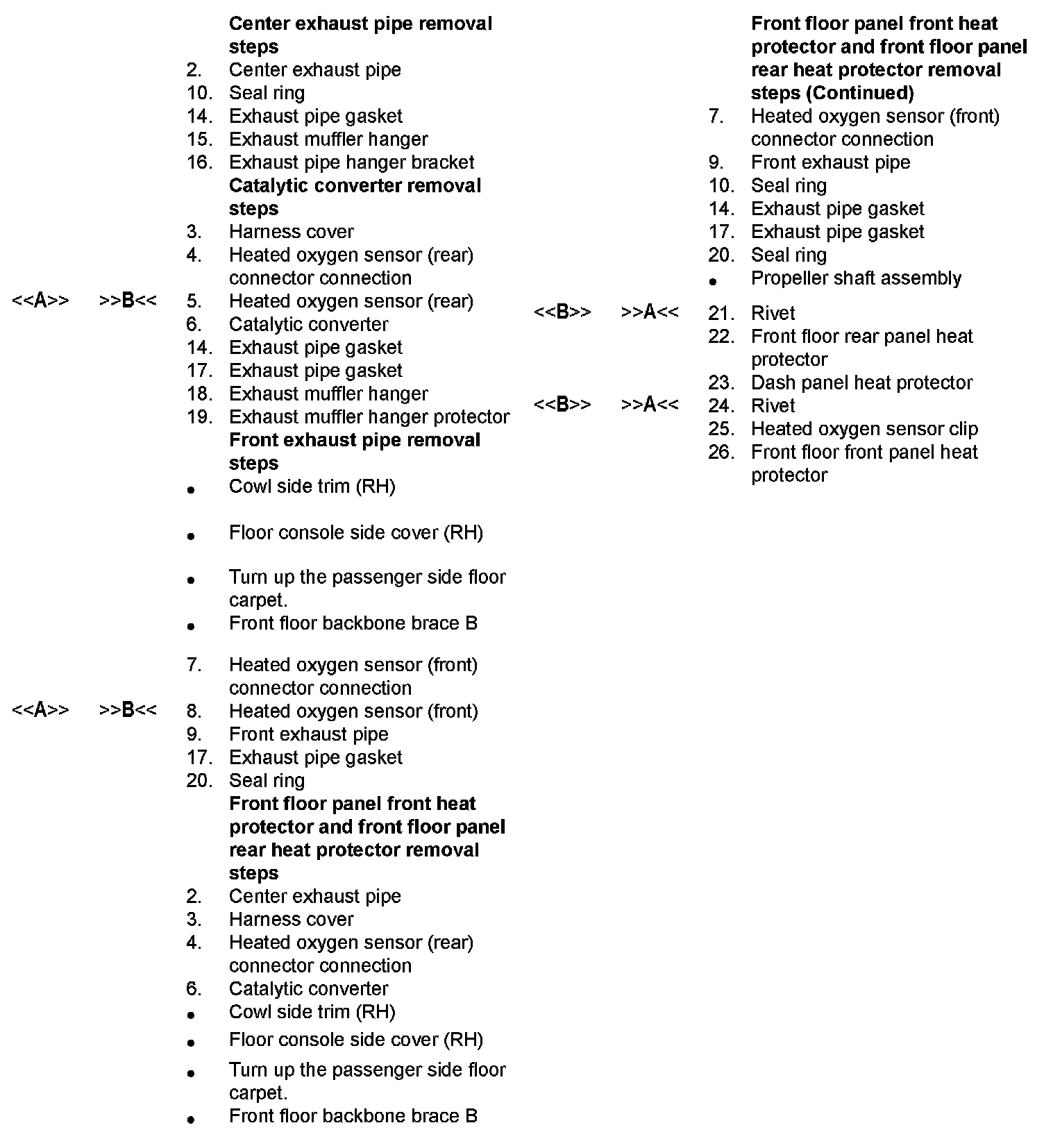

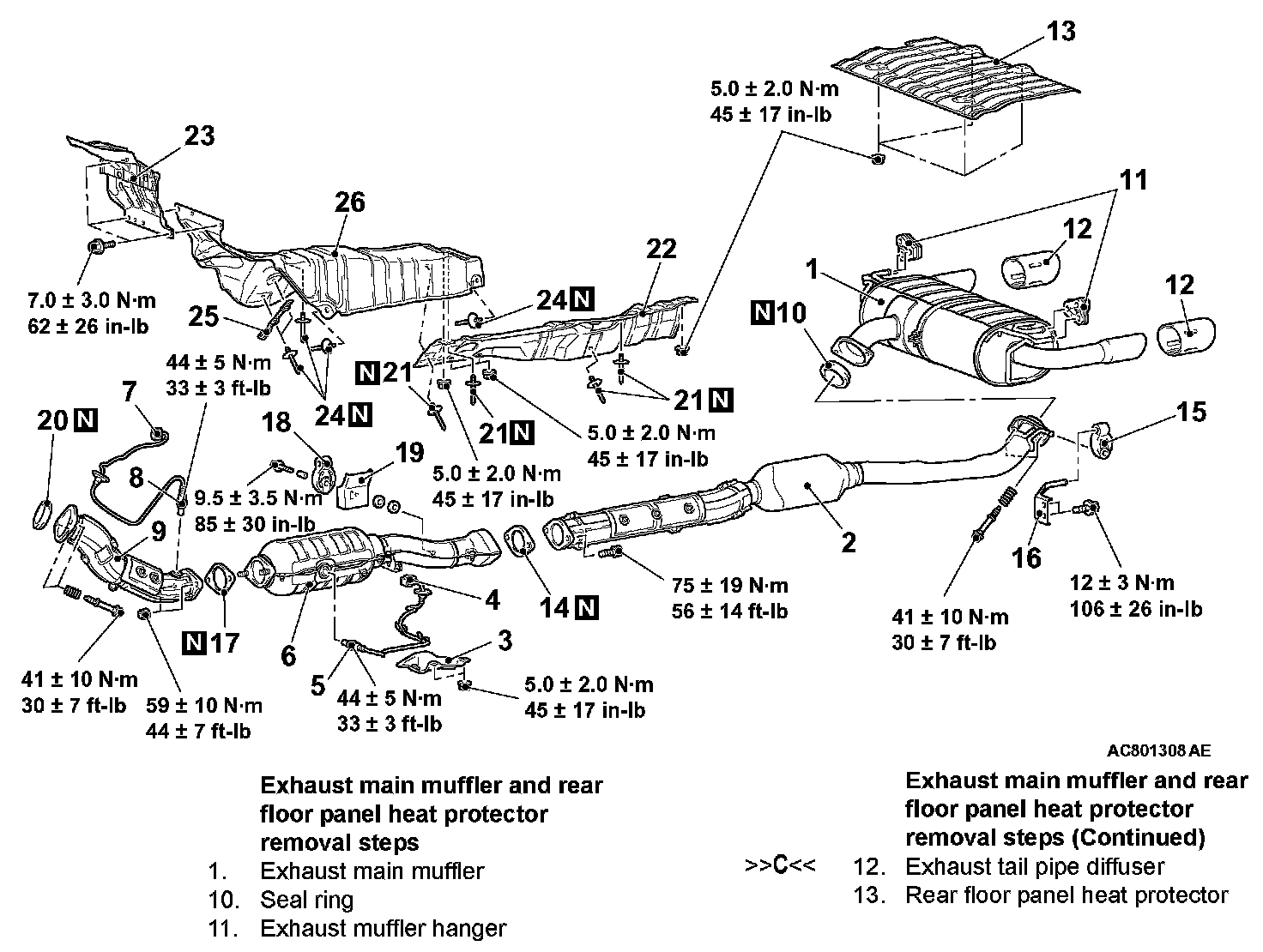

EXHAUST PIPE, MAIN MUFFLER AND CATALYTIC CONVERTER [2.0L ENGINE Turbo]

REMOVAL AND INSTALLATION










Required Special Tool:
- MB991953: Oxygen Sensor Wrench

REMOVAL SERVICE POINTS

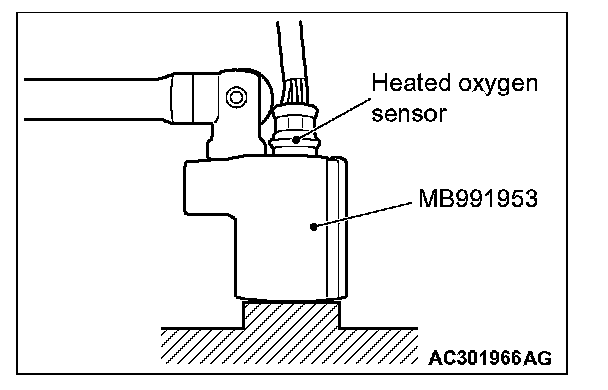

[[A]] HEATED OXYGEN SENSOR REMOVAL







Use special tool MB991953 to remove the heated oxygen sensor.

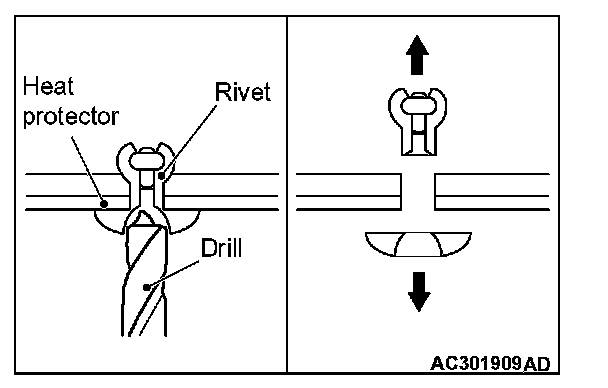

[[B]] RIVET REMOVAL

CAUTION: Be careful not to score the heat protector by drill.







Use a 6.0 / diameter / mm drill to make a hole in the rivet to break it, and then remove the rivet.

INSTALLATION SERVICE POINTS

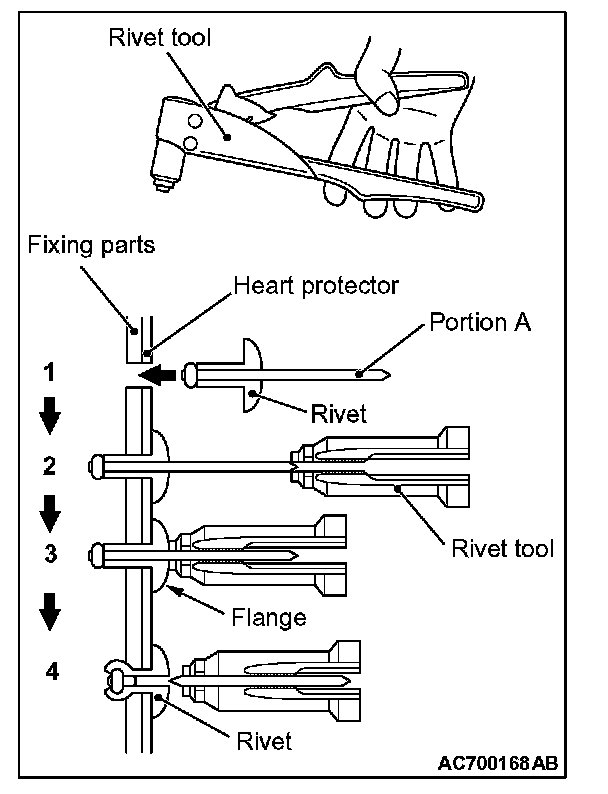

]]A[[ RIVET INSTALLATION







Use a rivet tool shown in the illustration to connect the parts with rivets by the following procedures.

1. Insert the rivet into a corresponding location.
2. Set the rivet tool at a portion A of rivet.
3. While pushing the flange surface of the rivet onto parts to be fixed with the rivet tool, press the handle of the tool.
4. Thin part of portion A of the rivet will be cut off and the parts is fixed in position.

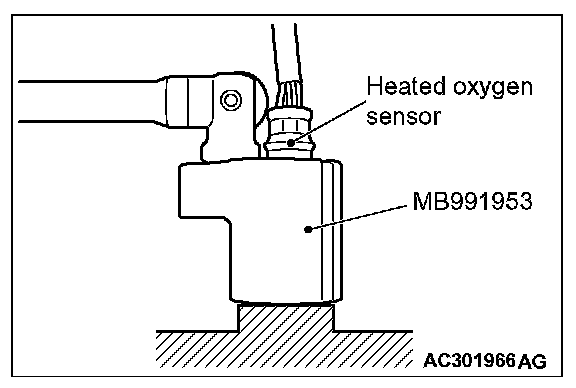

]]B[[ HEATED OXYGEN SENSOR INSTALLATION







Tighten the heated oxygen sensor to the specified torque by using special tool MB991953.

Tightening torque: 44 ± 5 N.m (33 ± 3 ft-lb)

]]C[[ EXHAUST TAIL PIPE DIFFUSER INSTALLATION

When the part is reused, make sure that there is no excessive play after installation and that the part is securely fixed.
