Reading Diagnostic Trouble Codes

DIAGNOSTIC FUNCTION

HOW TO READ DIAGNOSTIC TROUBLE CODES

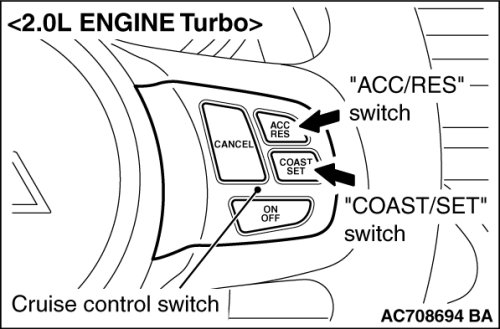

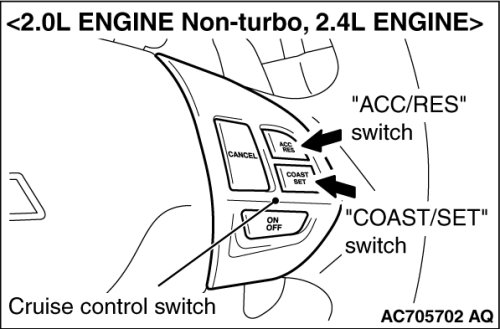

1. Turn the ignition switch to the "ON" position while press the "COAST/SET" switch. Then, within one second, release the "COAST/SET" switch and press the "ACC/RES" switch.

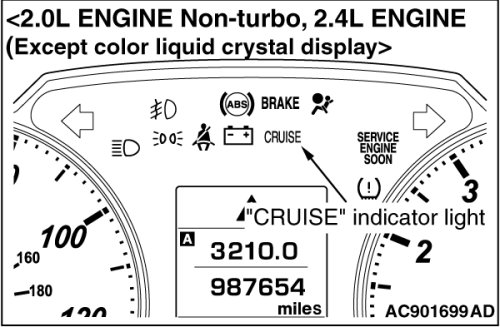

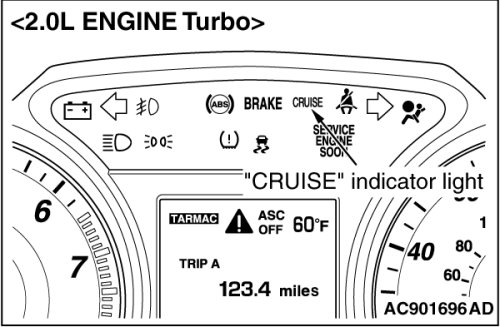

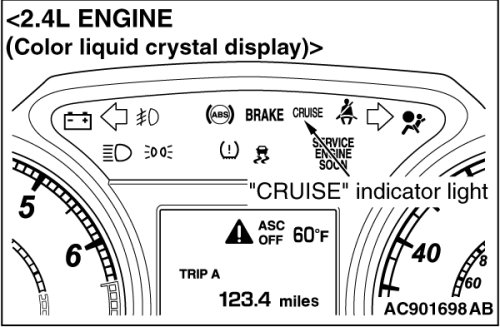

2. Read a DTC by observing the flash display pattern of the "CRUISE" indicator light in the combination meter.

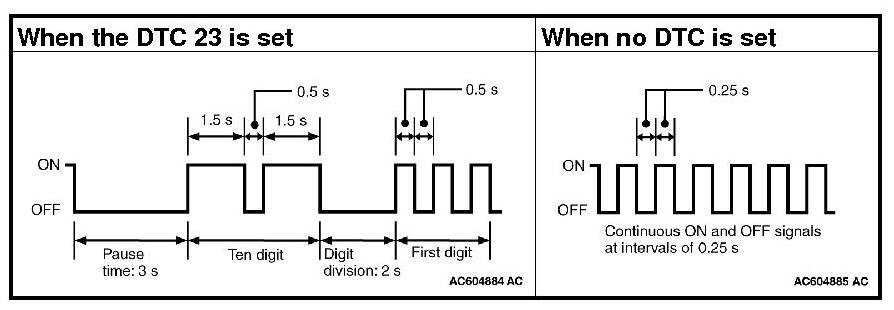

Diagnostic result display method when using the "CRUISE" indicator light





NOTE:
Other on-board diagnostic items are also output as voltage waveforms corresponding to diagnostic trouble code numbers.
