Vacuum Brake Booster Check Valve: Testing and Inspection

CHECK VALVE OPERATION CHECK

1. Remove the check valve (Refer to Master Cylinder Assembly and Brake Booster Assembly Removal and Installation [Except Ralliart] Master Cylinder Assembly and Brake Booster Assembly Removal and Installation [Ralliart]).





2.
CAUTION:
Replace the check valve when it is faulty.

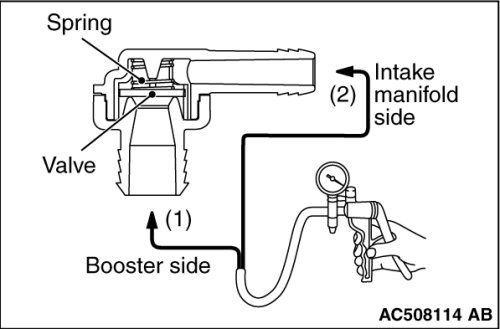

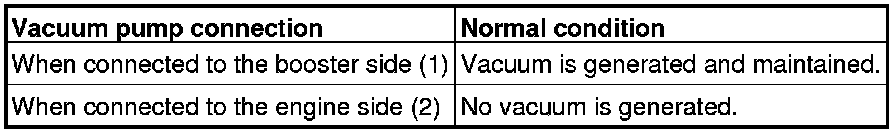

Using a vacuum pump, check operation of the check valve.
