Silencer Application Locations

SILENCER APPLICATION LOCATIONS

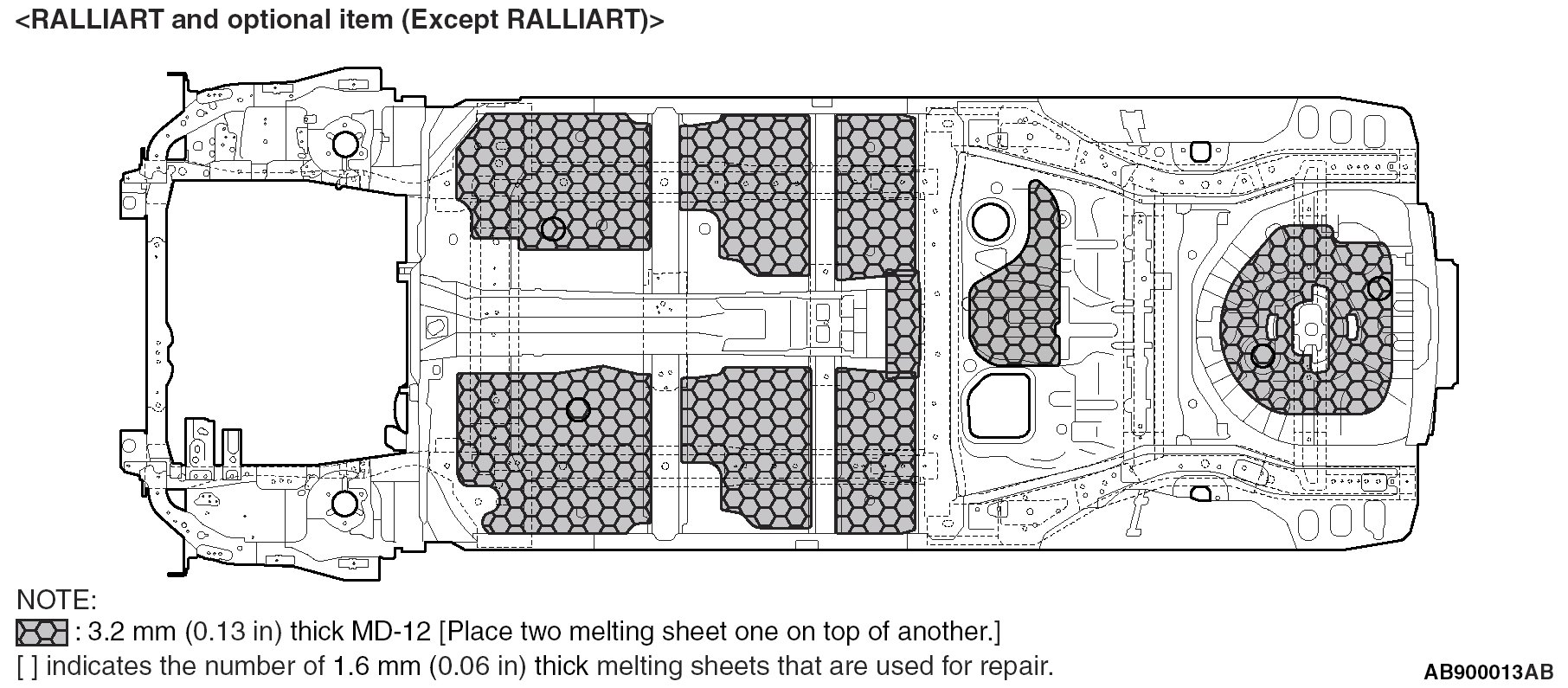

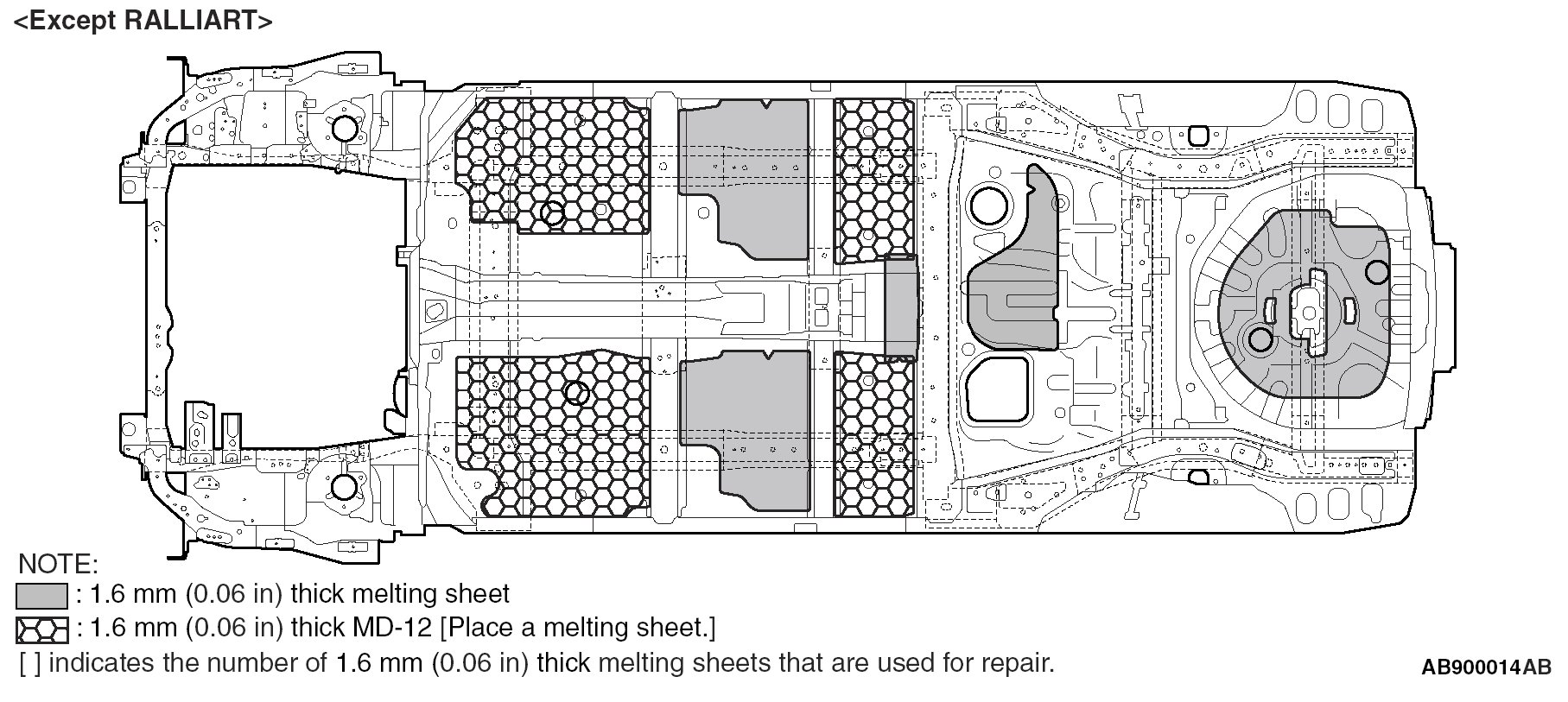

A silencer (MD-12 and melting sheet) has been affixed on the upper surface of the floor for vibration damping.

NOTE: MD-12 is a high performance sheet composed of asphalt applied with mica and thermo setting resin for improving anti-vibration performance.
