Foaming Material Usage Locations

FOAMING MATERIAL USAGE LOCATIONS

CAUTION: The sound dampening foam material may burn when heated. Always observe the following instructions:
- Never use a gas burner to burn the areas where sound dampening foam material is used.
- When cutting the parts which are provided with sound dampening foam material, ensure to use tools (air saw, etc.) that do not generate fire.
- If there are residual sound dampening foam material remaining on the cut section (body side), remove the sound dampening foam material from periphery of the welding area before welding work.

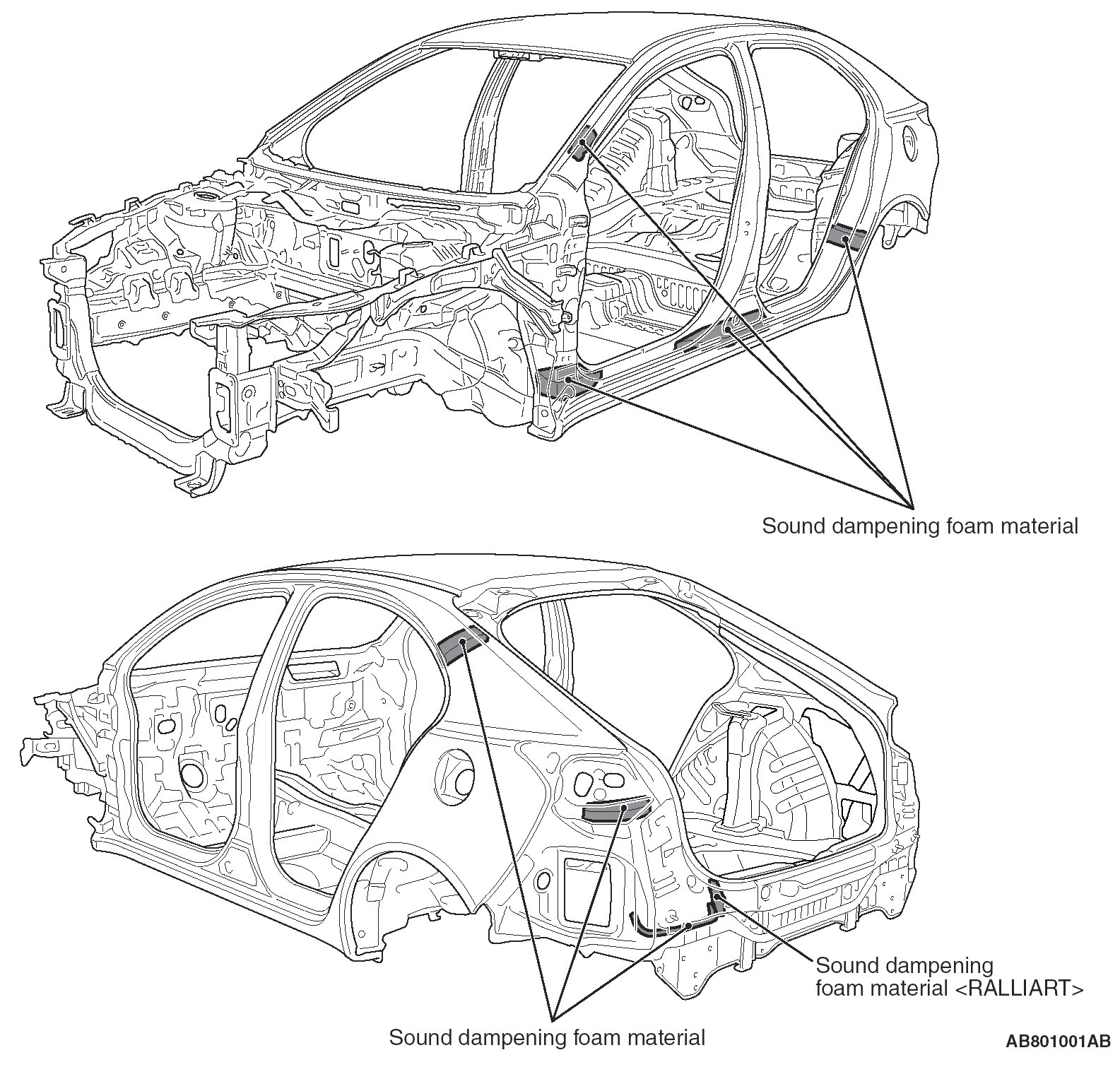

The sound dampening foam material have been adopted to the upper and lower sections of the front pillar, center pillar lower section, gate pillar section, the wheel house arch, the rear combination light housing and rear end panel inner inside to shield from external noise.
