Lancer Sportback L4-2.0L Turbo (4B11T)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Sensors and Switches - Body and Frame
>>
Power Door Lock Switch
>>
Testing and Inspection
>>

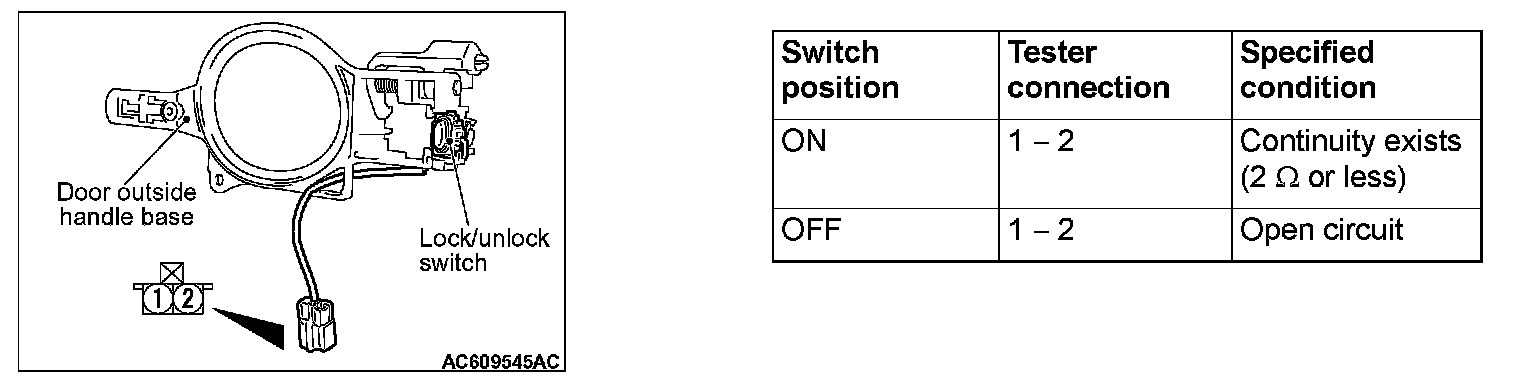

Lock/Unlock Switch Check
Lock/Unlock Switch Check
LOCK/UNLOCK SWITCH CHECK [VEHICLE WITH KOS]
