Lancer Sportback L4-2.0L Turbo (4B11T)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Temperature Element
>>
Testing and Inspection
>>
Seatback Heater Check
Seatback Heater Check

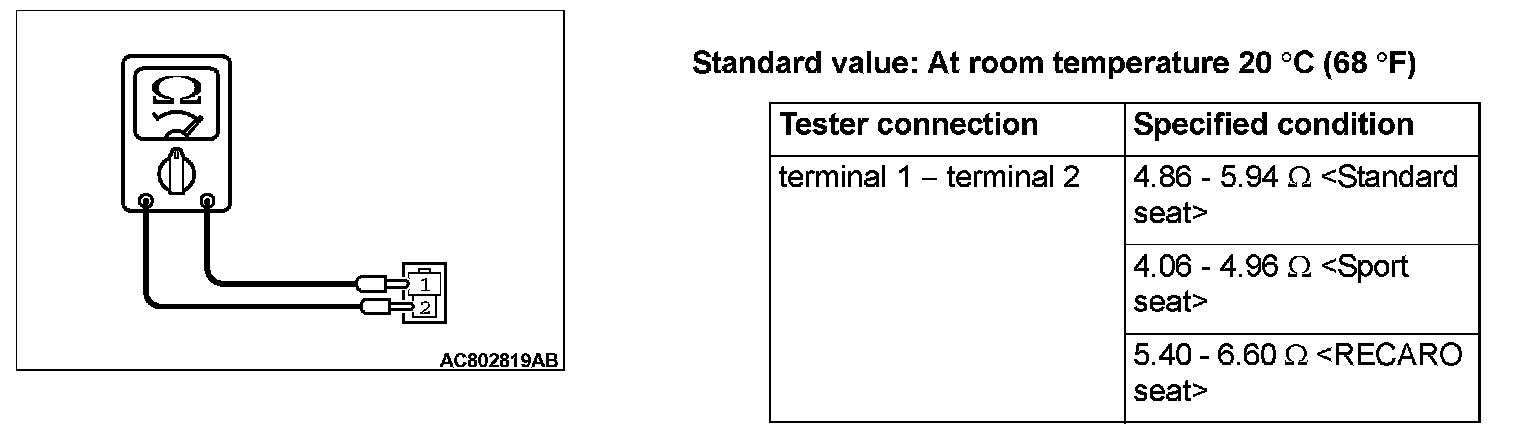

SEATBACK HEATER CHECK
Measure the resistance between terminals.
