Inside Rear View Mirror
INSIDE REAR VIEW MIRROR

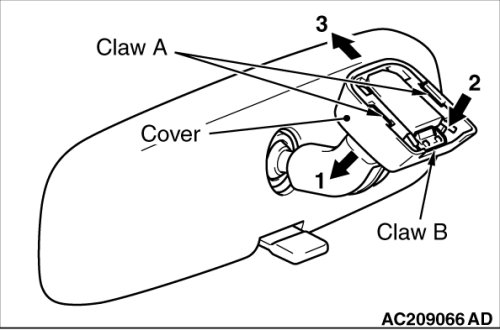

REMOVAL SERVICE POINT
1.
Disengage claw A and lower the cover in the arrow 1 direction.
2.
Push claw B in the arrow 2 direction to unlock, and pull out the mirror in the arrow 3 direction.
