Front Fender: Service and Repair

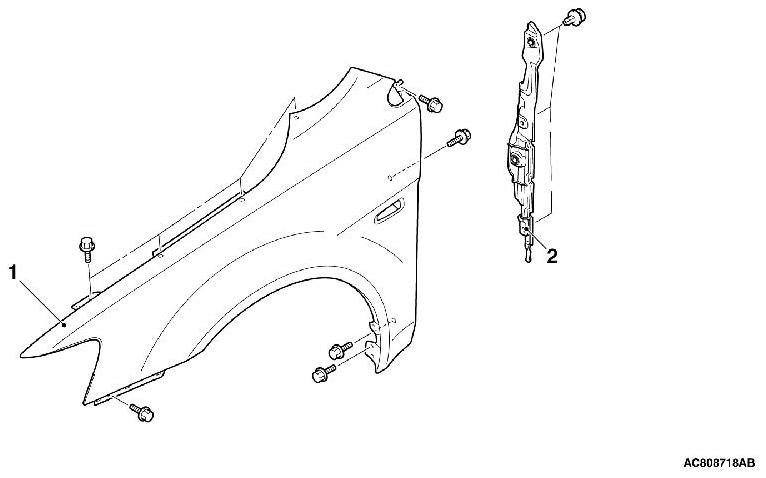

REMOVAL AND INSTALLATION

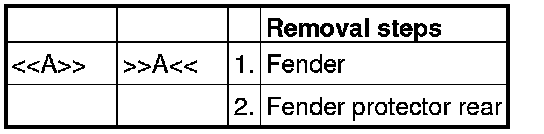

REMOVAL SERVICE POINT

[[A]]
FENDER REMOVAL

1. Remove the fender protector rear clips.

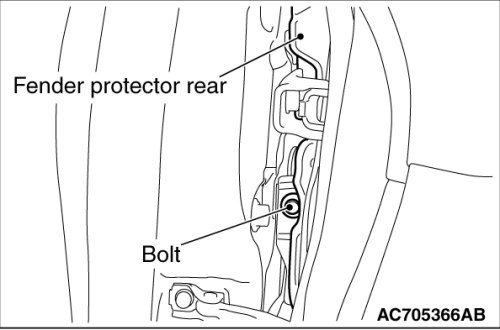

2. Slide the fender protector rear to access and remove the bolt as shown in the illustration.

INSTALLATION SERVICE POINT

]]A[[
FENDER INSTALLATION

1. Temporarily install the fender protector rear to the fender.





2. Install the fender to the body with the bolt shown not installed.
3. Slide the temporarily-installed fender protector rear and tighten the bolt.
