Trunk / Liftgate Latch: Adjustments

ADJUSTMENT OF ENGAGEMENT BETWEEN STRIKER AND LATCH

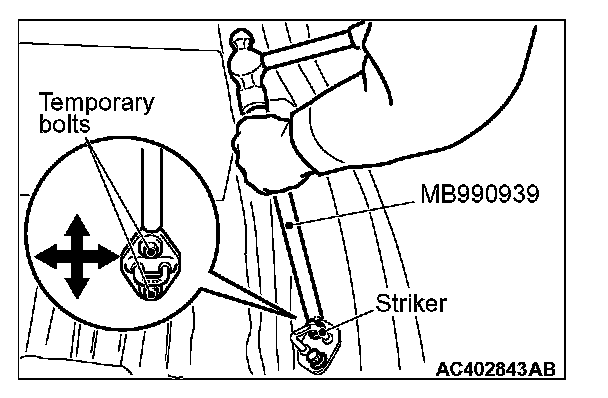

1. Replace the striker mounting screws with temporary bolts, and use the remover bar (Special tool: MB990939) and a hammer to tap the temporary bolt to the desired direction.
2. Tighten the striker mounting screws.

Tightening torque: 20 ± 5 N.m (15 ± 3 ft-lb)
