Trunk / Liftgate Handle: Service and Repair

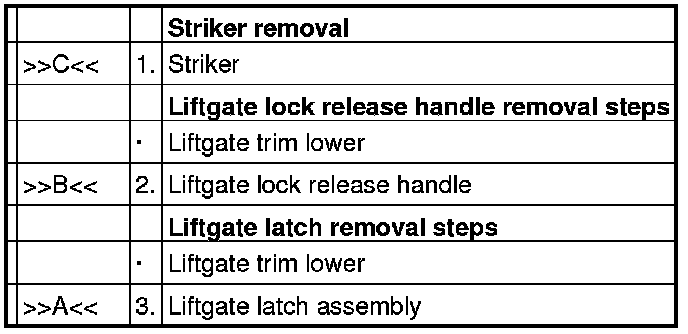

REMOVAL AND INSTALLATION













INSTALLATION SERVICE POINTS

]]A[[ LIFTGATE LATCH ASSEMBLY INSTALLATION

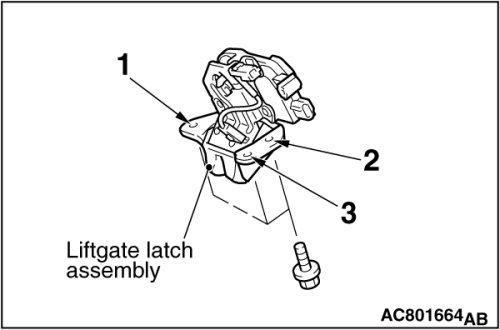

Install the mounting bolts of liftgate latch assembly in the order shown in the illustration.

]]B[[ LIFTGATE LOCK RELEASE HANDLE INSTALLATION





Install the mounting bolts of liftgate lock release handle in the order shown in the illustration.

]]C[[ STRIKER INSTALLATION

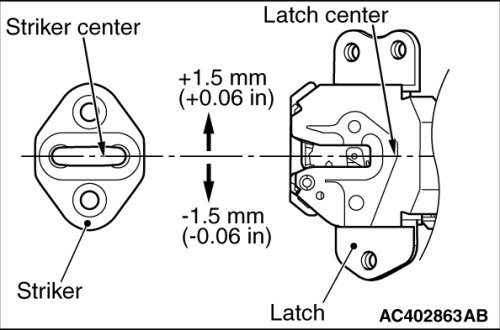

Install the striker so that the striker center does not deviate more than ±1.5 mm (0.06 inch) from the latch center.
