Trunk Lid




INSPECTION

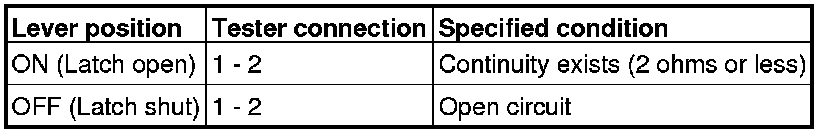

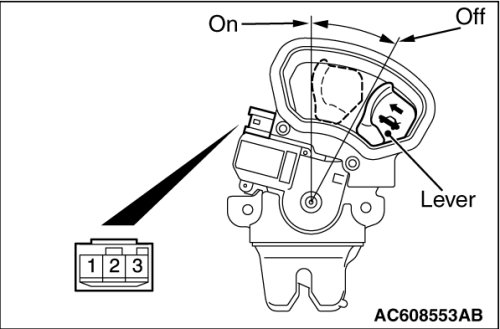

TRUNK LID LATCH ASSEMBLY CHECK

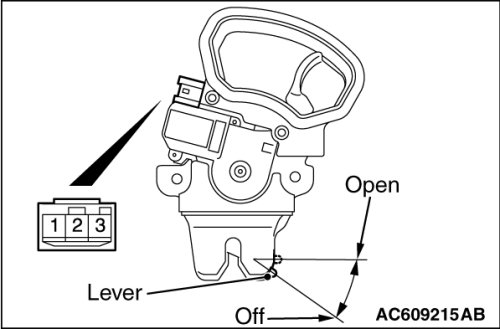

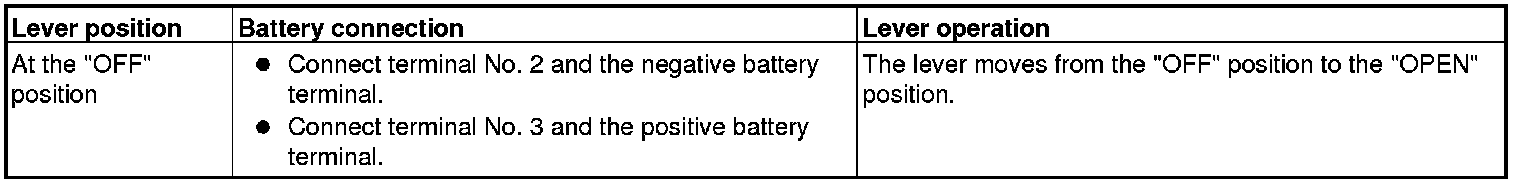

TRUNK LID LATCH ACTUATOR CHECK










TRUNK LID LATCH SWITCH CONTINUITY CHECK

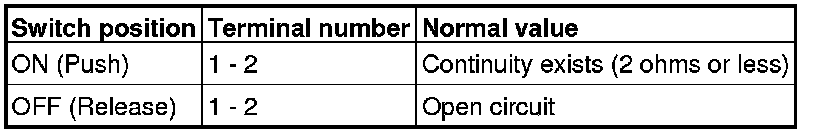

TRUNK LID OPENER SWITCH CHECK [VEHICLES WITH KOS]
