Overhaul

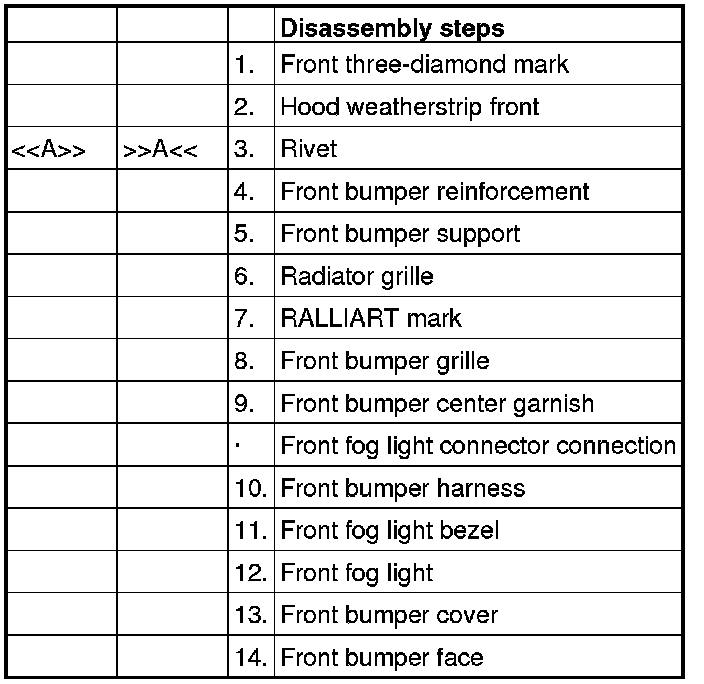

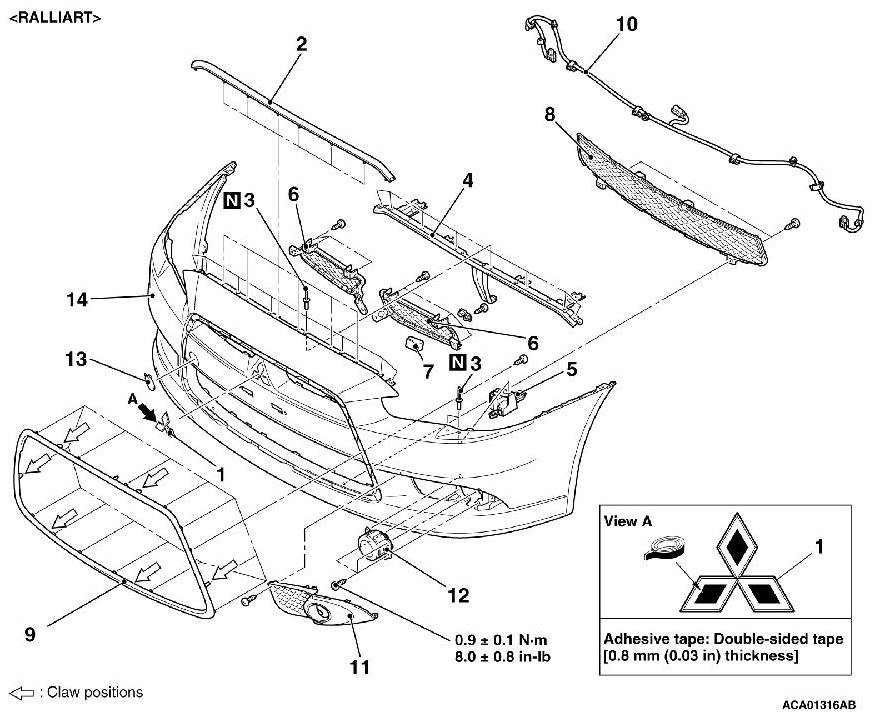

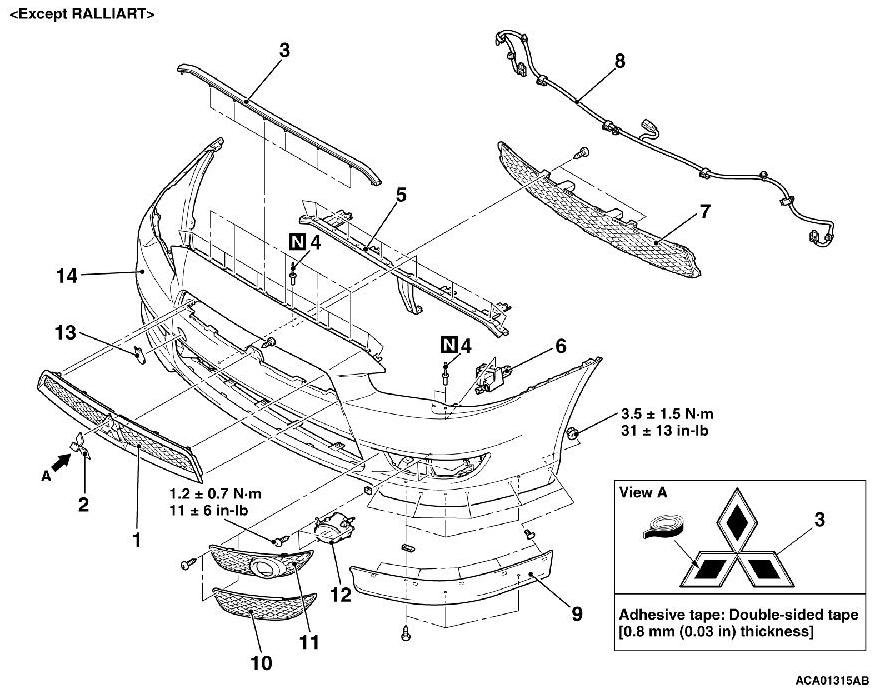

DISASSEMBLY AND ASSEMBLY

















DISASSEMBLY SERVICE POINT

[[A]] RIVETS REMOVAL

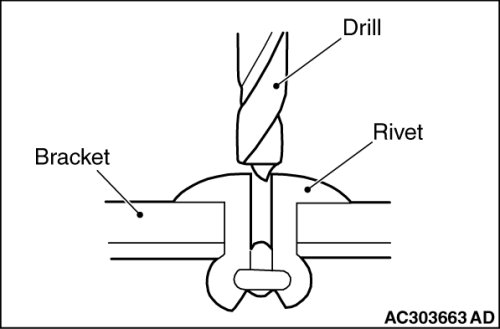

Use a drill (dia. 4.0 mm) to make a hole in the rivet to break it, and remove the rivet.

REASSEMBLY SERVICE POINT

]]A[[ RIVETS INSTALLATION

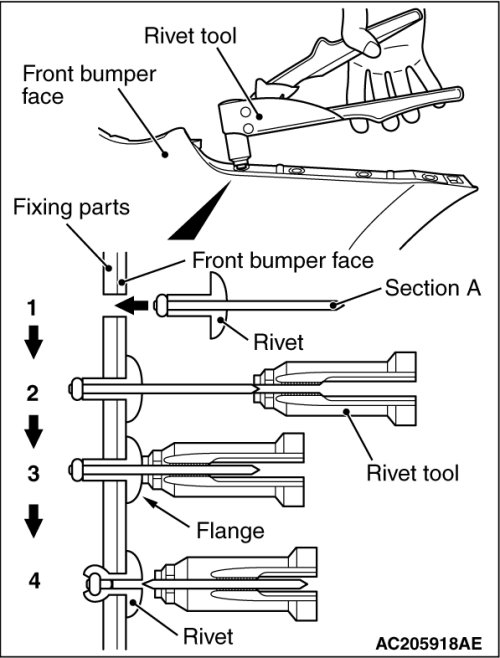

Use a rivet tool shown in the illustration to connect the parts with rivets by the following procedures.
1. Insert the rivet into a corresponding location.
2. Set the rivet tool at a section A of rivet.
3. While pushing the flange surface of the rivet onto parts to be fixed with the rivet tool, press the handle of the tool.
4. Thin part of section A of the rivet will be cut off and the parts is fixed in position.
