Electronic Time and Alarm Control System (ETACS)-ECU Removal and Installation

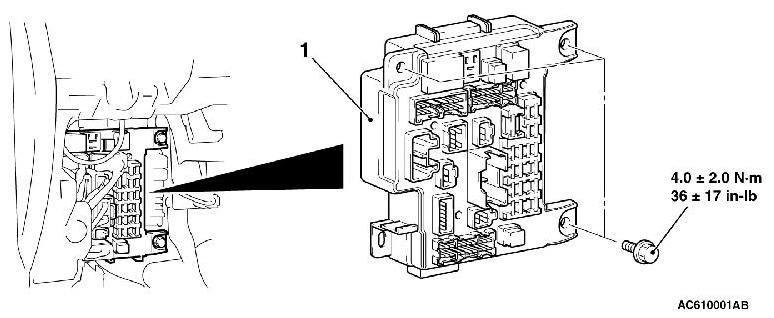

REMOVAL AND INSTALLATION

WARNING:

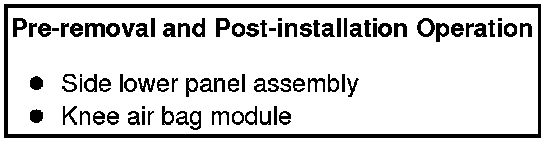

- Before removing the ETACS-ECU and knee air bag module, refer to Service Precautions Technician Safety Information and Knee Air Bag Module Removal and Installation.
- When removing and installing the ETACS-ECU, do not let it bump against the knee air bag module.

CAUTION:
When the ETACS-ECU is replaced, chassis number writing and coding must be performed. When diagnostic trouble code No. B1761 "Chassis No. not programmed" or No. B222C "Coding not completed" is set to the ETACS-ECU, perform chassis number writing and coding. Refer to the "M.U.T.-III Owner's Manual" and perform coding.
