Tweeter




GENERAL INFORMATION

TWEETER

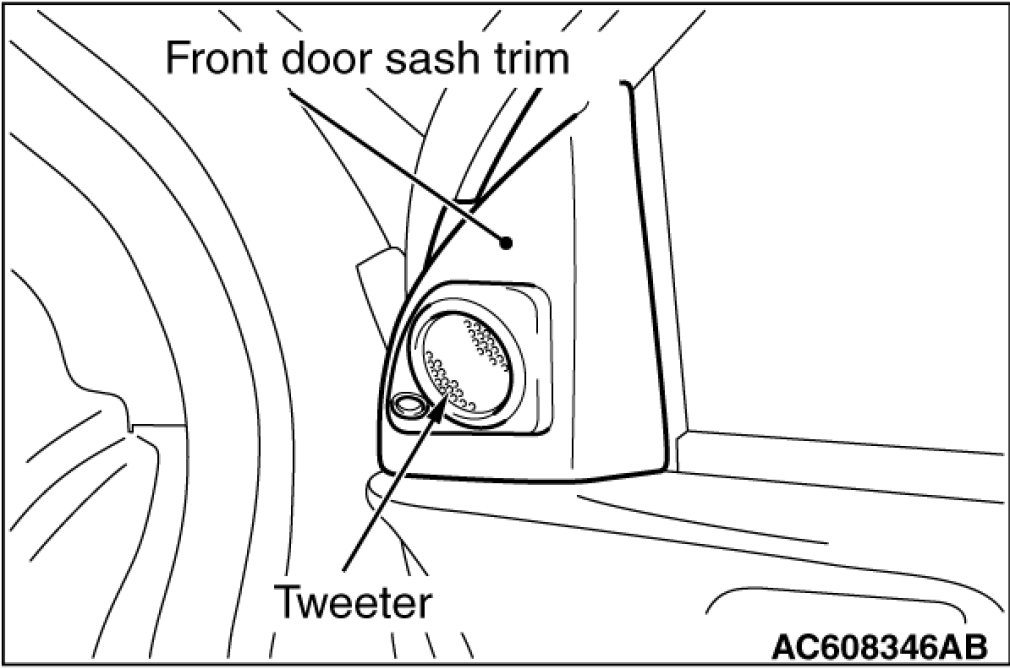

For the front sash trim, two types of tweeters, the balanced dome tweeter [Vehicles with 6 speakers]
and soft dome tweeter [Vehicles with 9 speakers (Rockford Fosgate (R)
premium sound system)], have been established. The soft dome tweeter can play clearer treble with less distortion compared to the balanced dome tweeter. For better treble, two types of front sash garnish, resin type [Vehicles with 6 speakers]
and punching metal type [Rockford Fosgate (R)
premium sound system], has been established. With the punching metal type, the metal has been adopted for the punching part to enlarge the punching opening, enabling the playback of cleaner treble.
