Door Entry Function

GENERAL INFORMATION

DOOR ENTRY FUNCTION

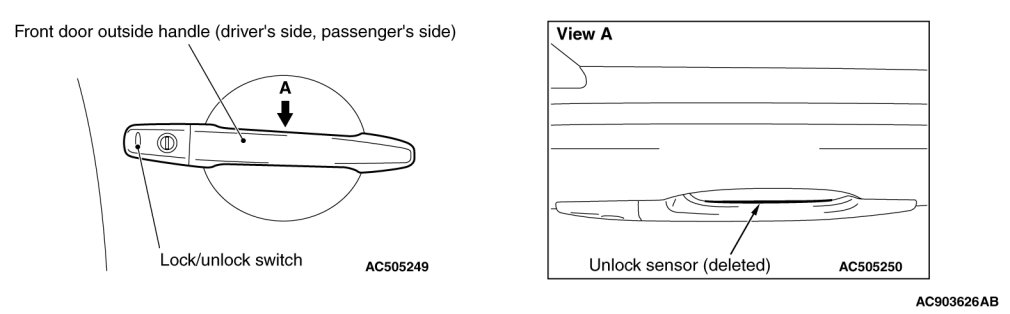

Due to the abolishment of the unlock sensor for the door outside handle (driver's/passenger's side), the lock switch has been changed to a lock and unlock switch. The unlock/lock control has been changed. The other service procedures are the same as before.

UNLOCKING OPERATION OF DOOR ENTRY FUNCTION

The keyless operation key and KOS-ECU communicate to certify the keyless operation key when the lock/unlock switch on the driver-side/front passenger-side door outside handle or the liftgate lock release handle [LANCER SPORTBACK]
is turned ON.
When KOS-ECU certifies the registered keyless operation key on the outer side of the vehicle, it requests ETACS-ECU to unlock the doors and the liftgate [LANCER SPORTBACK].

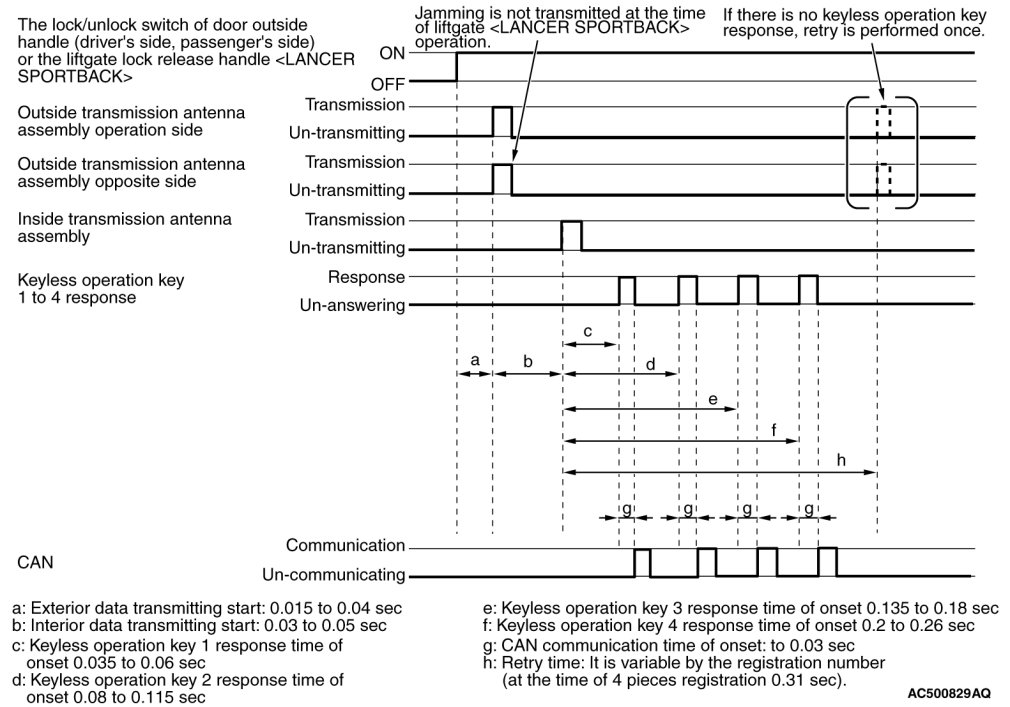

CONTROL OF UNLOCKING OPERATION






UNLOCKING OPERATION INHIBITION TIME (WHEN THE LIFTGATE IS OPERATED) [LANCER SPORTBACK]

Considering that the customer operates the lock switch of liftgate lock release handle to make sure the doors are locked, the unlocking operation is prohibited for 3 seconds after the locking operation is performed by the lock switch of liftgate lock release handle.

LOCKING OPERATION OF DOOR ENTRY FUNCTION

The keyless operation key and KOS-ECU communicate to certify the keyless operation key when the lock/unlock switch on the driver-side/front passenger-side door outside handle or the liftgate lock release handle (lock switch) [LANCER SPORTBACK]
is turned ON. When KOS-ECU certifies the registered keyless operation key only on the outer side of the vehicle, it requests ETACS-ECU to lock all the doors and the liftgate [LANCER SPORTBACK].
Dead lock function locks all the doors and liftgate [LANCER SPORTBACK], when the lock/unlock switch of door outside handle (driver's/passenger's side) is pressed once.
NOTE:
When a keyless operation key is located inside the vehicle, KOS-ECU does not output a request for locking all the doors.

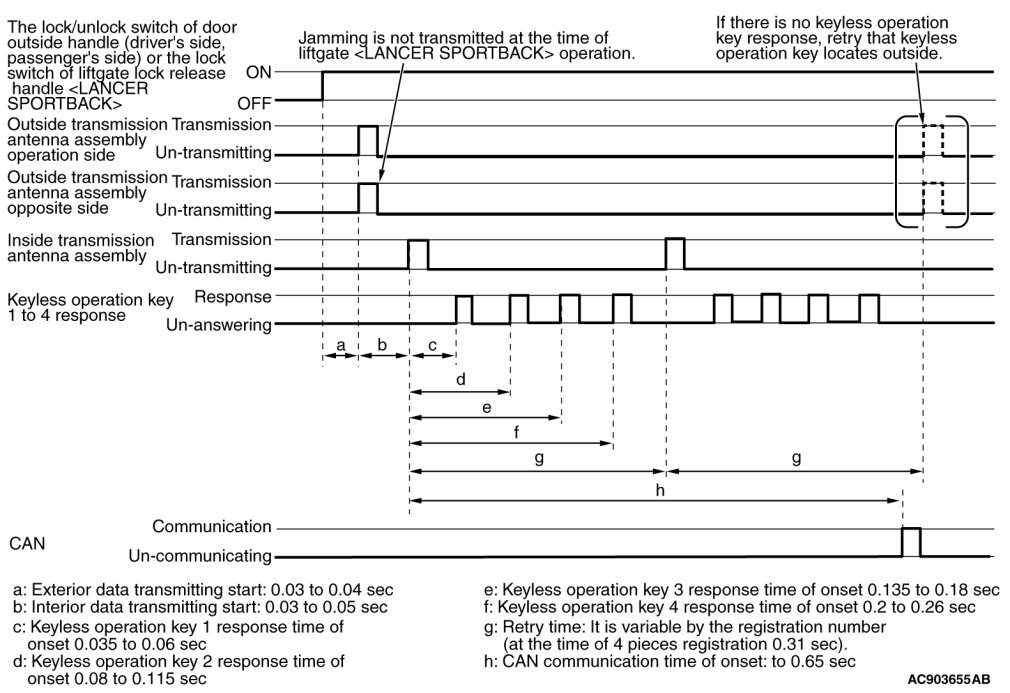

CONTROL OF LOCKING OPERATION
