Alarm Module: Testing and Inspection

INSPECTION

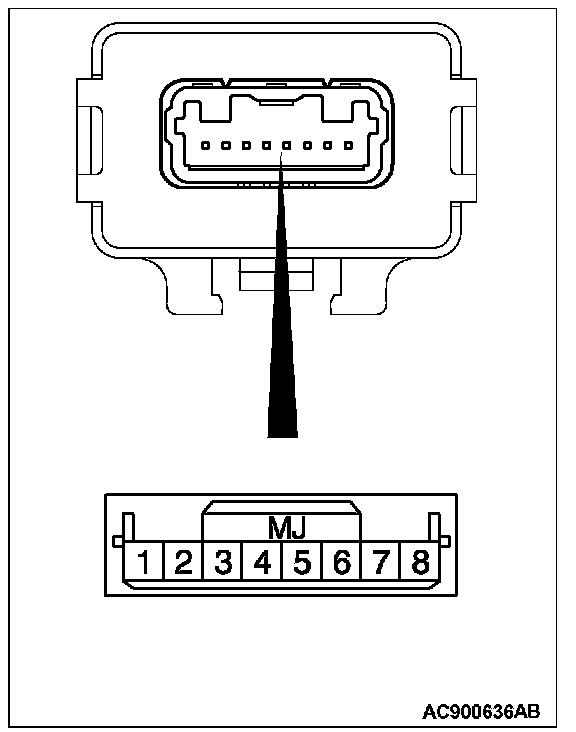

LIN CUTOFF CONTROL UNIT CHECK

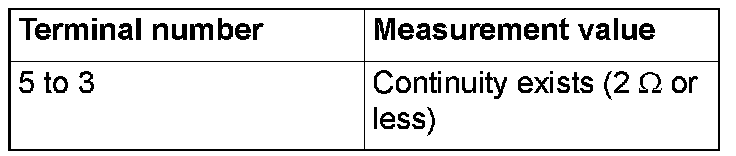

CONTINUITY CHECK

Remove the LIN cutoff control unit.

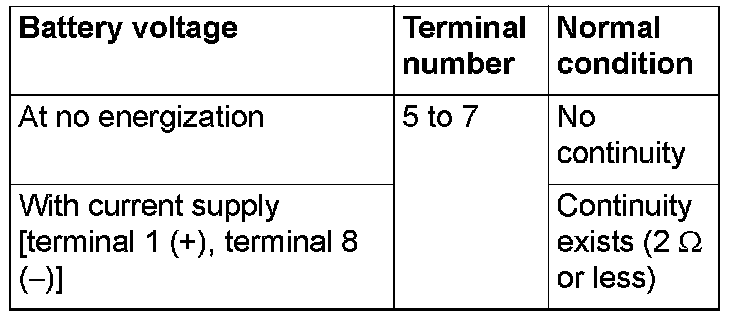

RELAY CHECK

Remove the LIN cutoff control unit.
