Keyless Operation System (KOS)

REMOVAL AND INSTALLATION

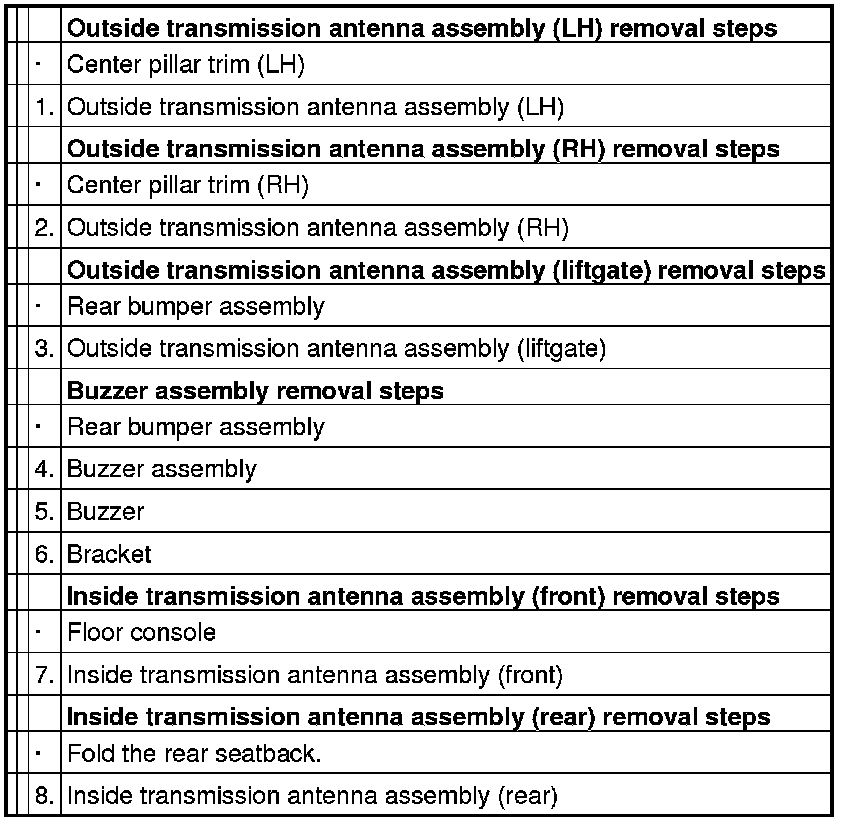

[OUTSIDE TRANSMISSION ANTENNA ASSEMBLY, INSIDE TRANSMISSION ANTENNA ASSEMBLY AND BUZZER ASSEMBLY]

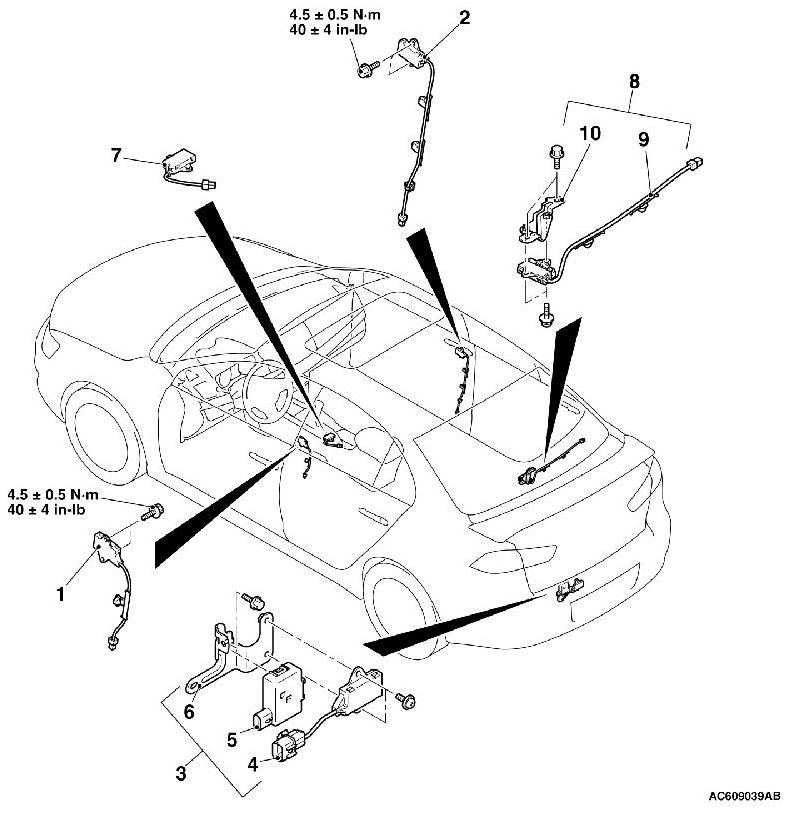

[LANCER]

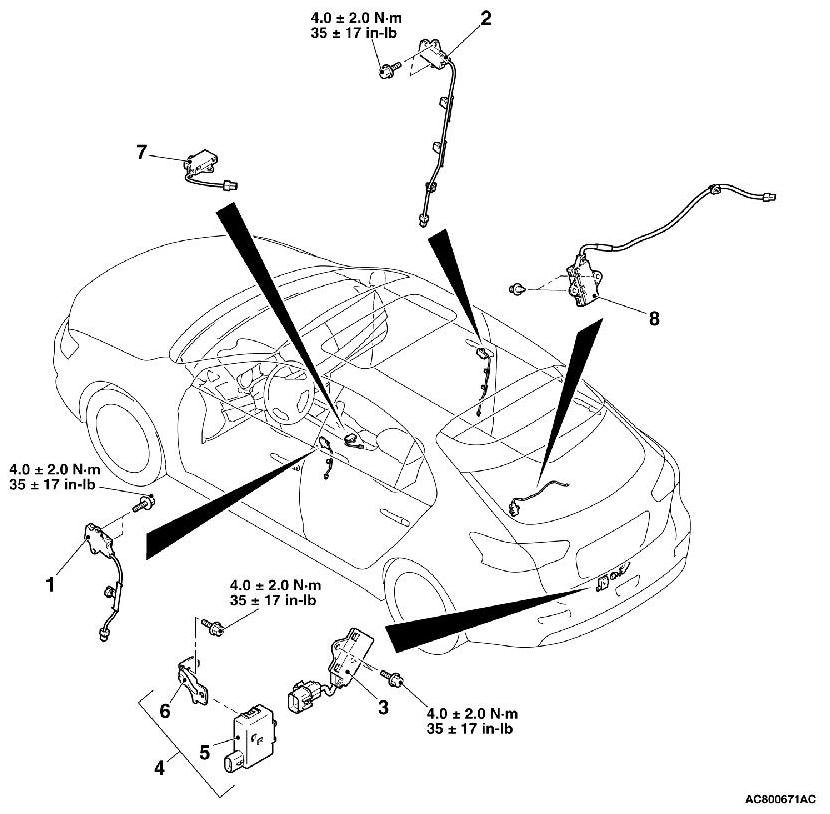

[LANCER SPORTBACK]

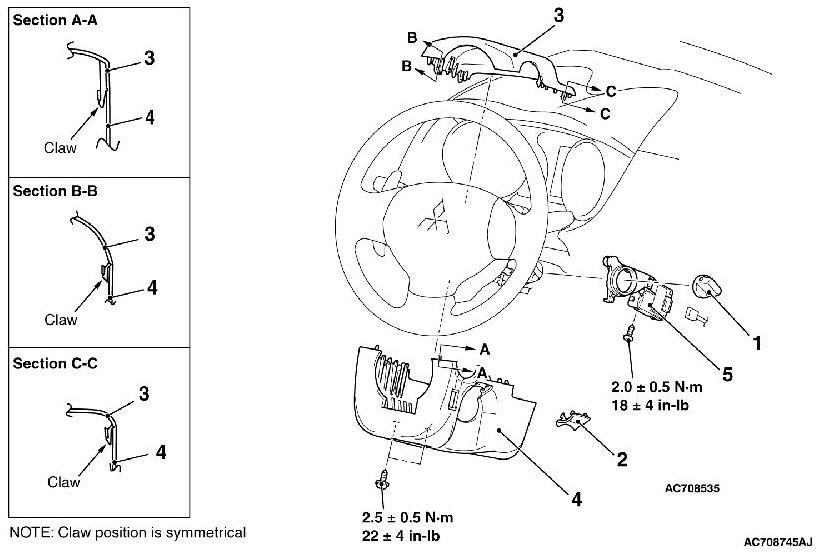

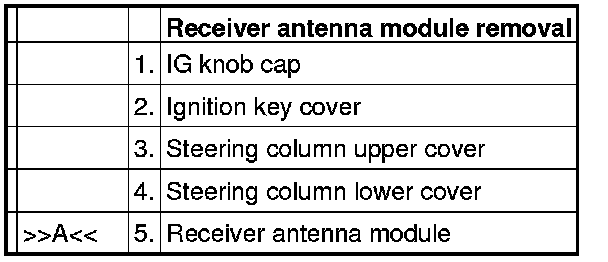

[RECEIVER ANTENNA MODULE]









INSTALLATION SERVICE POINT

]]A[[ RECEIVER ANTENNA MODULE INSTALLATION

Check that the top claw of receiver antenna module is fixed securely to the boss of steering lock and the antenna is not floated on the key cylinder.
