DTC P0328: Knock Sensor Circuit High

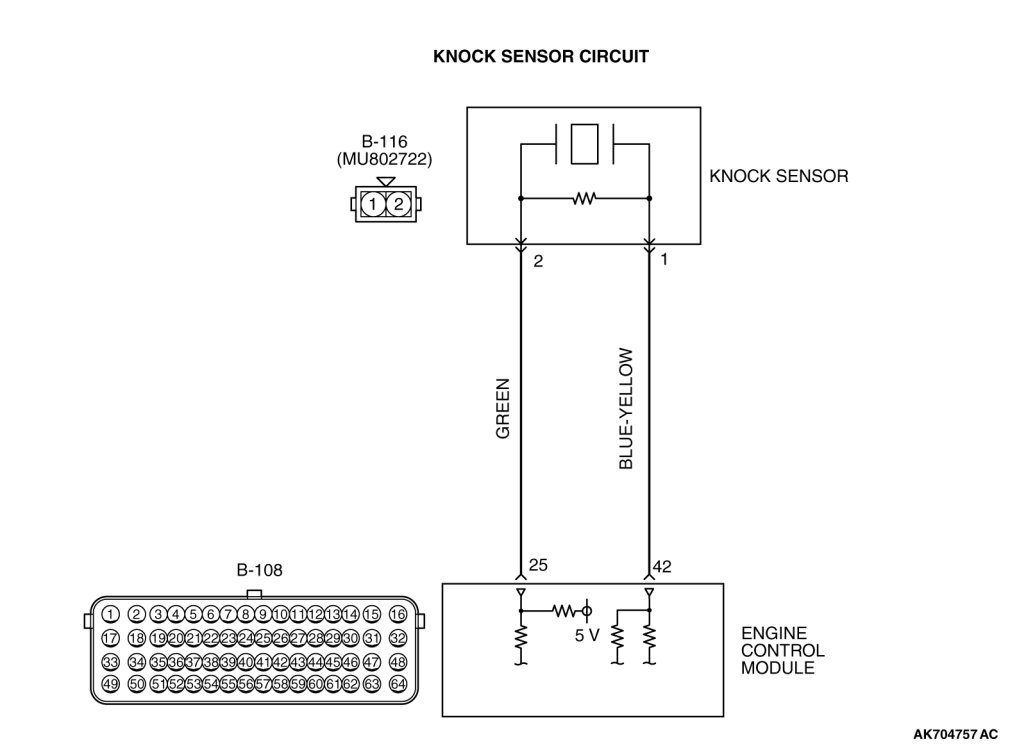

CIRCUIT OPERATION
- The knock sensor (terminal No. 2) sends a signal voltage to the ECM (terminal No. 25).
- The ground terminal (terminal No. 1) is grounded with ECM (terminal No. 42).
TECHNICAL DESCRIPTION
- The knock sensor converts the vibration of the cylinder block into a voltage and outputs it.
- The ECM checks whether the voltage is within a specified range.
DESCRIPTIONS OF MONITOR METHODS
Knock sensor output voltage is out of specified range.
MONITOR EXECUTION
Continuous
MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- Not applicable
Sensor (The sensor below is determined to be normal)
- Not applicable
DTC SET CONDITIONS

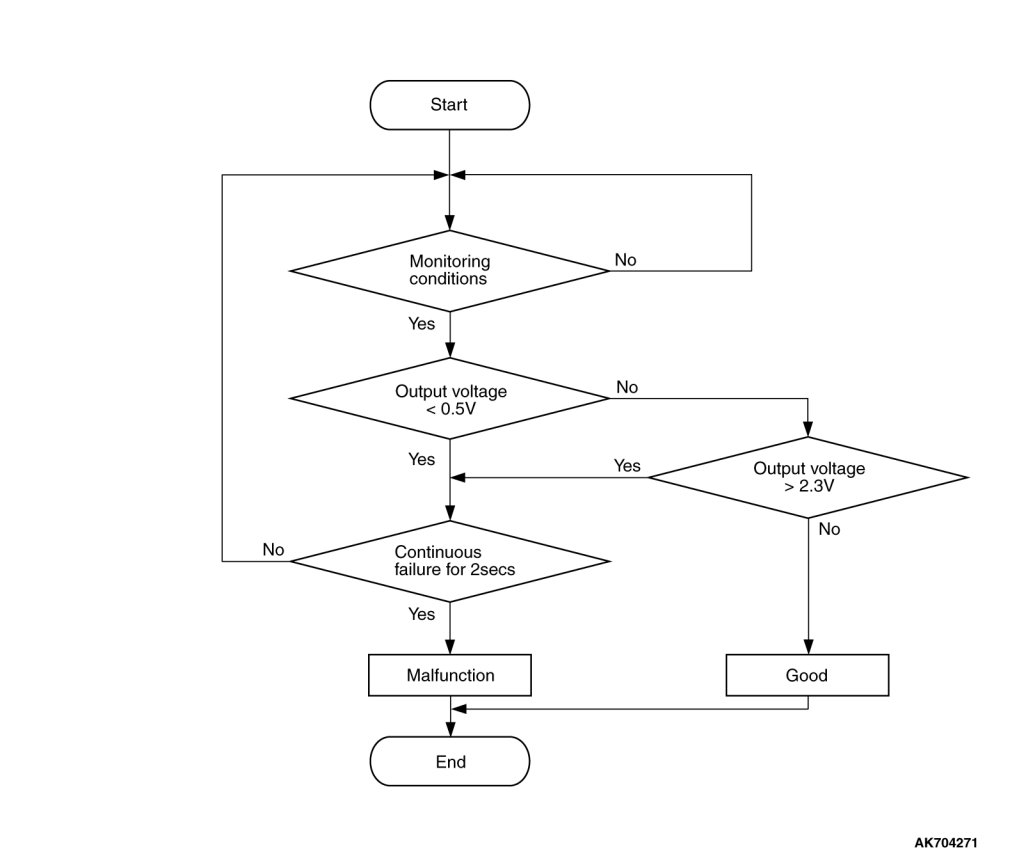

Logic Flow Chart
Check Condition
- More than 2 seconds have passed since the engine starting sequence was completed.
Judgement Criterion
- Knock sensor output voltage is more than 2.3 volts for 2 seconds.
FAIL-SAFE AND BACKUP FUNCTION
- Fix the ignition timing with an allowance against knock.
OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23 Monitors, Trips, Drive Cycles and Readiness Codes .
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Shorted knock sensor circuit or connector damage.
- ECM failed.
DIAGNOSIS
Required Special Tool:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A

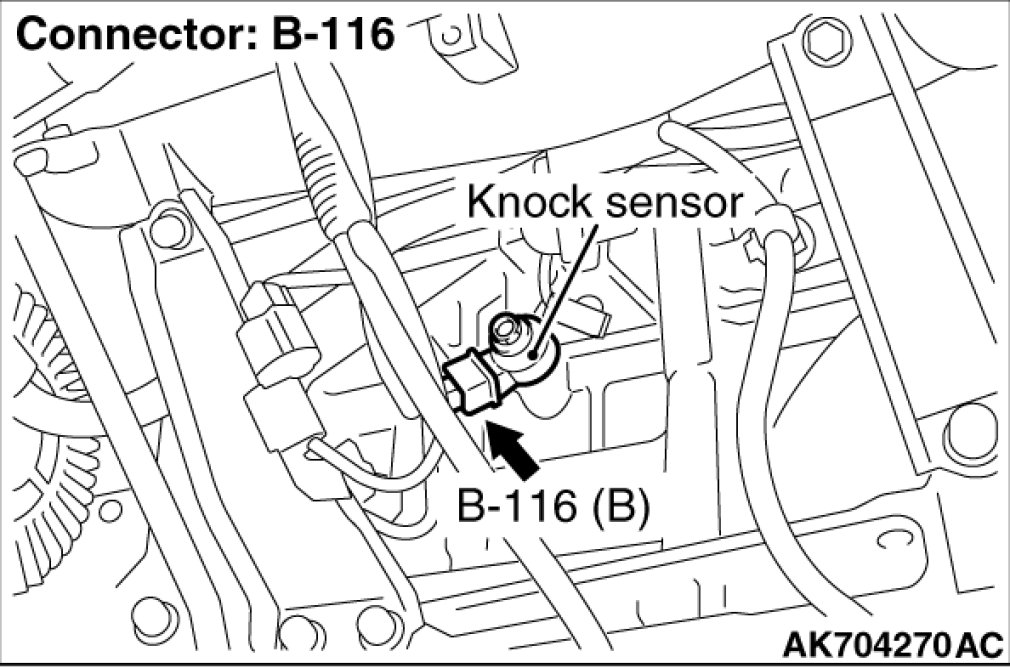

STEP 1. Check harness connector B-116 at knock sensor and harness connector B-108 at ECM for damage.
Q. Are the harness connectors in good condition?
YES Go to Step 2.
NO Repair or replace them. Harness Connector Inspection.
Then go to Step 5.
STEP 2. Check for short circuit to power supply between knock sensor connector B-116 (terminal No. 2) and ECM connector B-108 (terminal No. 25).
Q. Is the harness wire in good condition?
YES Go to Step 3.
NO Repair it. Then go to Step 5.
STEP 3. Check for short circuit to power supply between knock sensor connector B-116 (terminal No. 1) and ECM connector B-108 (terminal No. 42).
Q. Is the harness wire in good condition?
YES Go to Step 4.
NO Repair it. Then go to Step 5.
STEP 4. Check the trouble symptoms.
(1)Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23 Monitors, Trips, Drive Cycles and Readiness Codes.
(2)Check the diagnostic trouble code (DTC).
Q. Is DTC P0328 set?
YES Replace the ECM (Refer to, Removal and Installation Removal and Replacement).
Then go to Step 5.
NO It can be assumed that this malfunction is intermittent. How to Cope With Intermittent Malfunctions.
STEP 5. Test the OBD-II drive cycle.
(1)Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23 Monitors, Trips, Drive Cycles and Readiness Codes.
(2)Check the diagnostic trouble code (DTC).
Q. Is DTC P0328 set?
YES Retry the troubleshooting.
NO The inspection is complete.
