Bell Crank Disassembly and Assembly

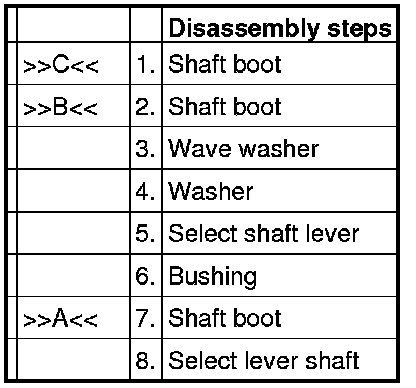

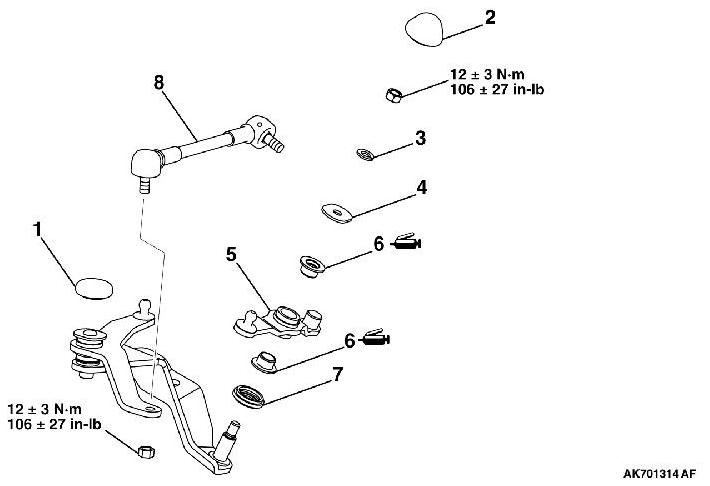

BELLCRANK DISASSEMBLY AND ASSEMBLY









ASSEMBLY SERVICE POINTS

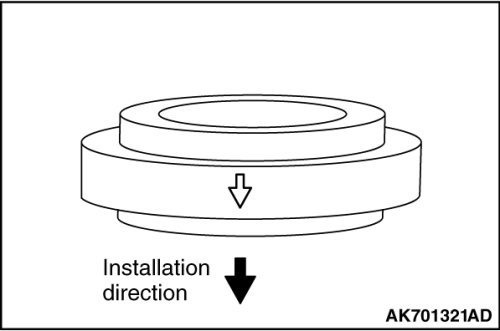

]]A[[ SHAFT BOOT INSTALLATION





Install the shaft boot so that the stamp can be oriented as shown in the illustration.

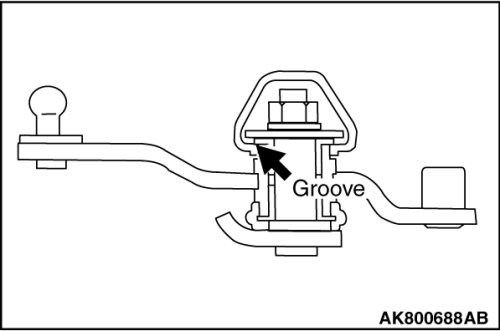

]]B[[ SHAFT BOOT INSTALLATION





Fit the shaft boot into the groove.

]]C[[ SHAFT BOOT INSTALLATION





Fit the shaft boot into the groove.
