Lancer Sportback L4-2.0L (4B11)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Description and Operation
>>
Transaxle Configuration Drawing
Transaxle Configuration Drawing
GENERAL INFORMATION

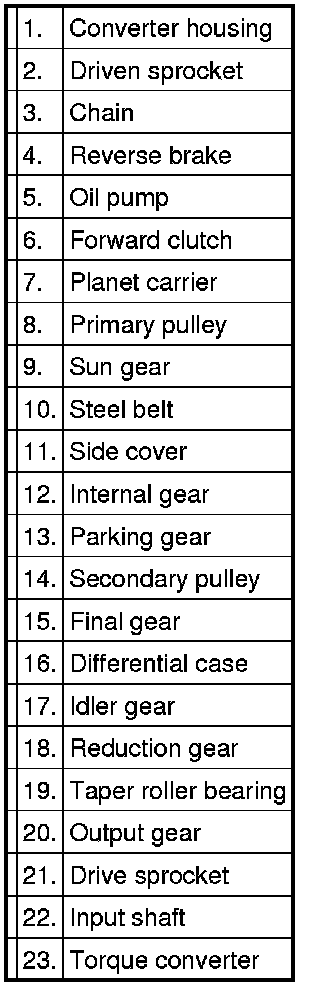

TRANSAXLE CONFIGURATION DRAWING

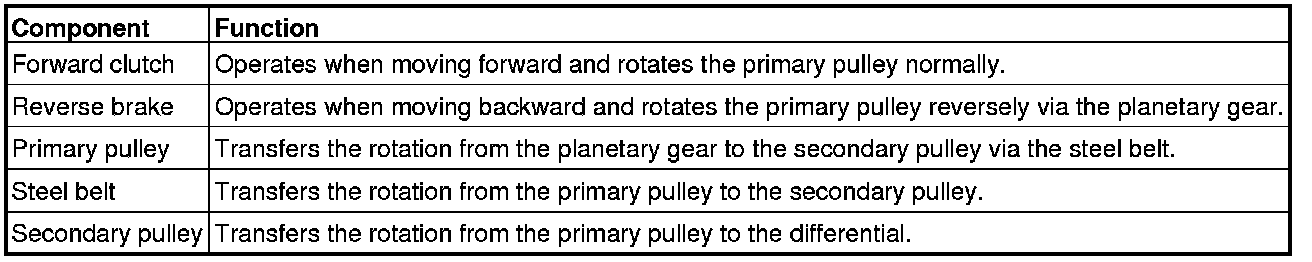

COMPONENTS AND FUNCTIONS
SECTIONAL VIEW
