Clutch Pedal Assembly: Service and Repair

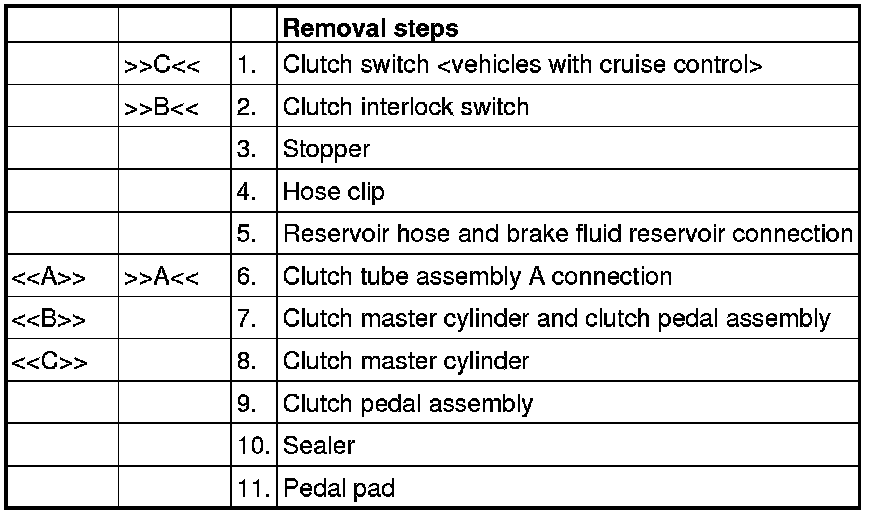

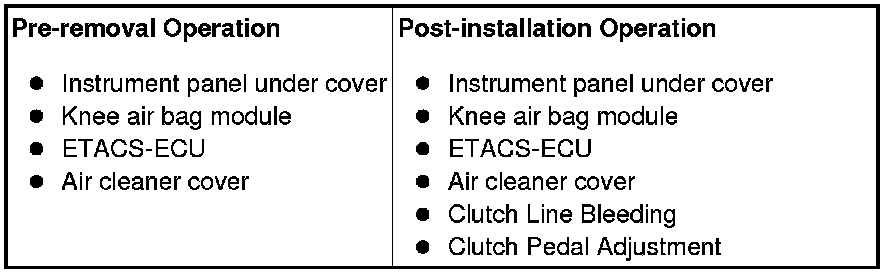

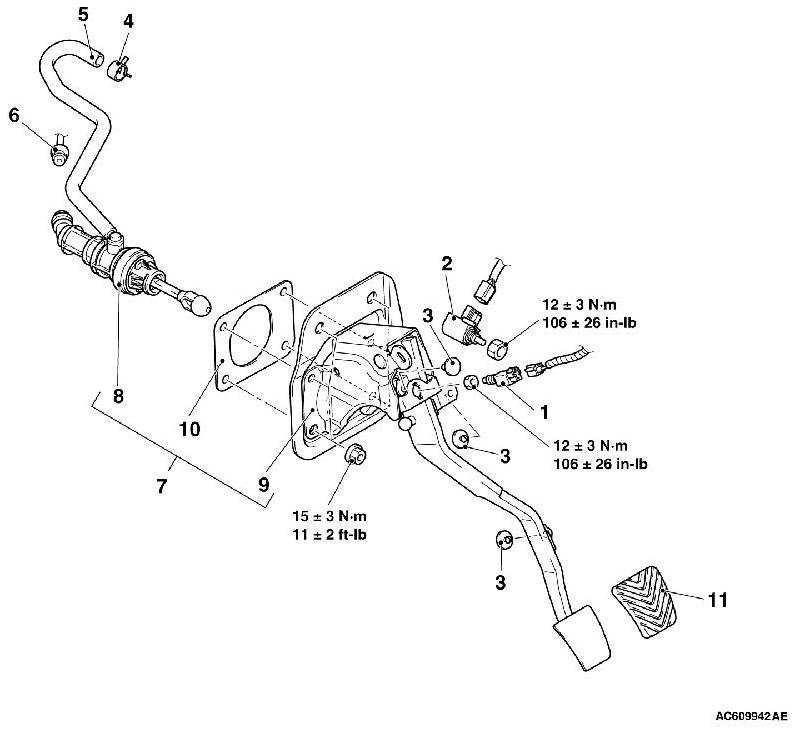

REMOVAL AND INSTALLATION

CAUTION:
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.













REMOVAL SERVICE POINT

[[A]] CLUTCH TUBE ASSEMBLY A DISCONNECTION





CAUTION:

- Do not remove the O-rings and the clips from the clutch tube assembly A and the clutch master cylinder.
- If the O-rings or the clips of the clutch tube assembly A and the clutch master cylinder are damaged, replace each assembly.

[[B]] CLUTCH MASTER CYLINDER AND CLUTCH PEDAL ASSEMBLY REMOVAL

Remove the clutch master cylinder and clutch pedal assembly from inside the vehicle.

[[C]] CLUTCH MASTER CYLINDER REMOVAL

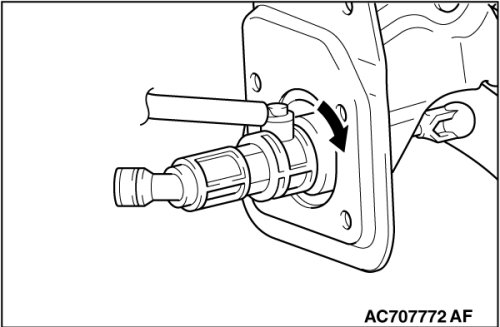

Pull out the clutch master cylinder by turning the cylinder 45° to the direction of the arrow shown in the figure.

INSTALLATION SERVICE POINT

]]A[[ CLUTCH TUBE ASSEMBLY A CONNECTION





CAUTION:

- Check that the O-rings and the clips are not damaged before installing the clutch tube assembly A and the clutch master cylinder.
- If the O-rings of the clutch tube assembly A and the clutch master cylinder and their installation positions are contaminated, clean with the clutch fluid before installation.

After installing the clip to the clutch master cylinder, install the clutch tube assembly A to the clutch master cylinder.

]]B [[ CLUTCH INTERLOCK SWITCH INSTALLATION

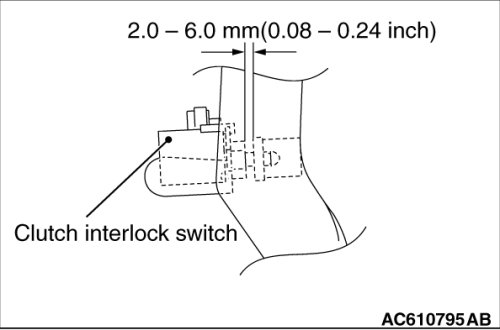

Install the clutch interlock switch at the specified dimension when the clutch pedal is released.

]]C[[ CLUTCH SWITCH INSTALLATION

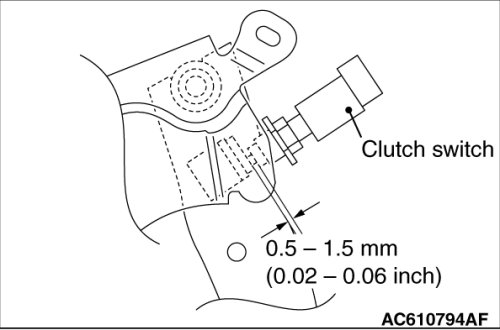

Install the clutch switch at the specified dimension when the clutch pedal is released.
