Clutch Switch: Testing and Inspection

CLUTCH SWITCH CHECK [VEHICLES WITH CRUISE CONTROL]

CAUTION:
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

1. Check the clutch pedal.

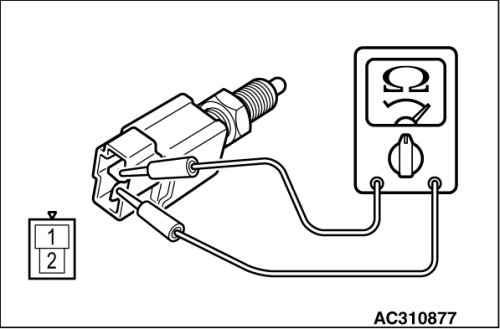

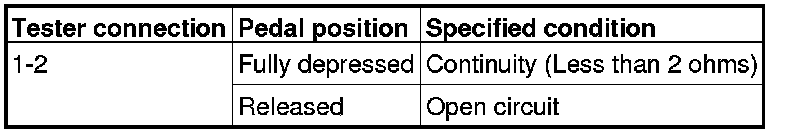

2. Connect an ohmmeter to the clutch switch connector, and then check for continuity when the clutch pedal is fully depressed and when it is released outward.





3. If the continuity is incorrect, replace the clutch switch.
