Removal and Replacement

REMOVAL AND INSTALLATION

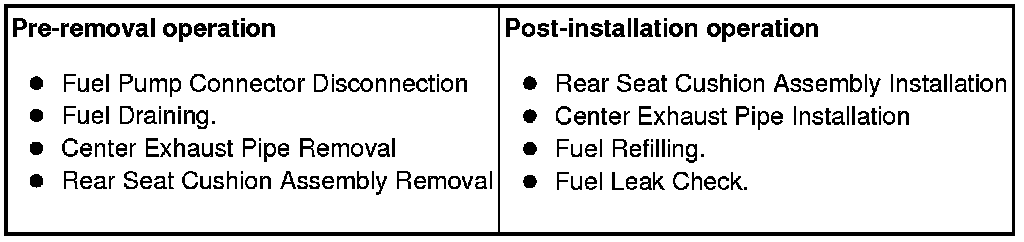

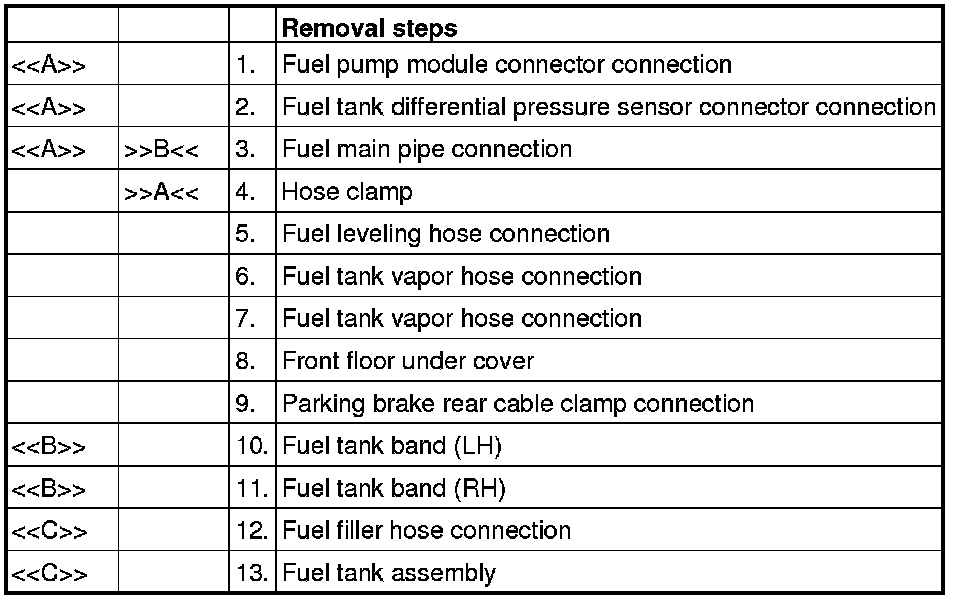

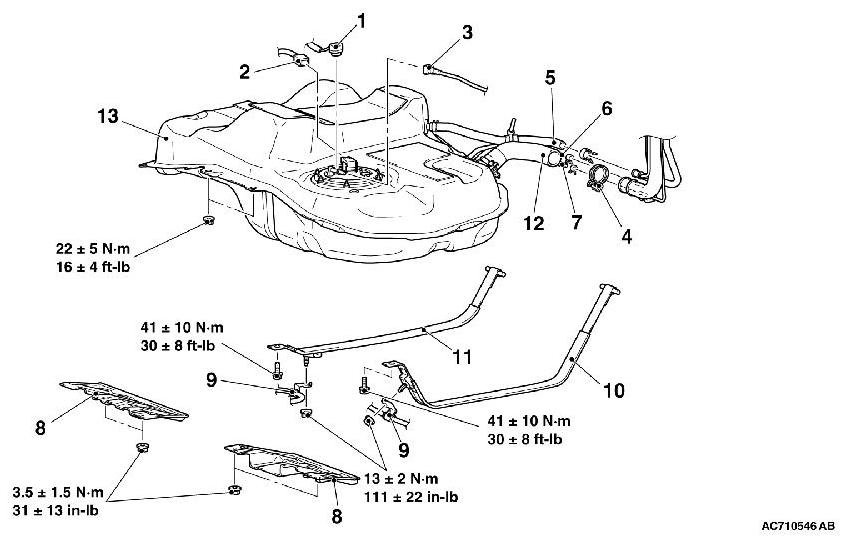

[FUEL TANK ASSEMBLY]

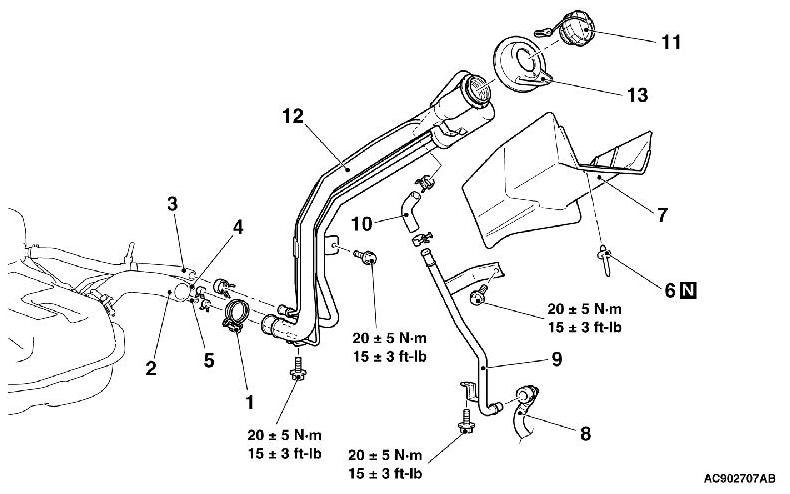

[FUEL TANK FILLER TUBE ASSEMBLY]









REMOVAL SERVICE POINTS

[[A]] FUEL PUMP MODULE CONNECTOR/FUEL TANK DIFFERENTIAL PRESSURE SENSOR CONNECTOR/FUEL MAIN PIPE DISCONNECTION





1. Remove the floor inspection lid (LH.)





2. Disconnect the fuel pump module connector and fuel tank differential pressure sensor connector.





3. Insert a flat-tip screwdriver [6mm (0.24 inch) wide and 1mm (0.04 inch) thick] into the retainer of the fuel main pipe connector.





4.
CAUTION:
When pushing up the retainer of the fuel main pipe connector, pay attention to avoid damage to the retainer.

Turn the flat-tipped screwdriver inserted into the retainer by 90 degree angle to push up the retainer and unlock the fuel main pipe.
5. Disconnect the fuel main pipe from the fuel pump module.

[[B]] FUEL TANK BAND (LH)/FUEL TANK BAND (RH) REMOVAL

1. Remove the fuel tank band (LH.)





2. Hold the fuel tank assembly with the transmission jack, and remove the fuel tank band
(RH.)

[[C]] FUEL FILLER HOSE CONNECTION/FUEL TANK ASSEMBLY REMOVAL

1. Hold the fuel tank assembly using the transmission jack, and remove the mounting nuts.

2. Disconnect the fuel filler hose connection, and remove the fuel tank assembly.

[[D]] RIVET REMOVAL

CAUTION:
Be careful not to score the heat protector by drill.





Use a 6.0 / diameter / mm drill to make a hole in the rivet to break it, and then remove the rivet.

INSTALLATION SERVICE POINTS

]]A[[ RIVET INSTALLATION





Use a rivet tool shown in the illustration to connect the parts with rivets by the following procedures.
1. Insert the rivet into a corresponding location.
2. Set the rivet tool at a portion A of rivet.
3. While pushing the flange surface of the rivet onto parts to be fixed with the rivet tool, press the handle of the tool.
4. Thin part of portion A of the rivet will be cut off and the parts is fixed in position.

]]B[[ HOSE CLAMP INSTALLATION





Connect the fuel filler hose, and tighten the bolt of hose clamp so that the bolt tightening dimension of the hose clump becomes 8.5 ± 1.5 mm (0.33 ± 0.06 inch.)

]]C[[ FUEL MAIN PIPE CONNECTION





1. Before the installation, push up the retainer of the fuel main pipe connector.





2. Connect the connector of fuel main pipe to the fuel pump module securely.
3.
CAUTION:

- When pushing in the retainer of the fuel high-pressure hose connector, pay attention to avoid damage to the retainer.
- After the installation of the fuel high-pressure hose, slightly pull the fuel high-pressure hose to check that it is connected securely. At this time, also check that there is approximately 1 mm (0.04inch) play.

Push in the retainer of the fuel main pipe connector to lock the fuel main pipe and fuel pump module.
