Home >> Mitsubishi >> 2011 >> Lancer Sportback L4-2.0L (4B11) >> Repair and Diagnosis >> Diagrams >> Connectors >> B Connectors - Engine and Transaxle (Transmission) >> B-101 to B-119

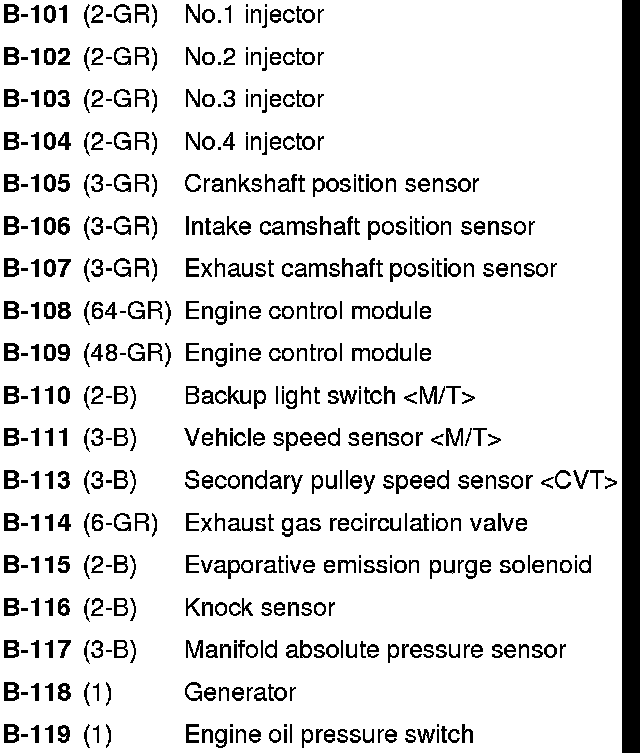

B-101 to B-119

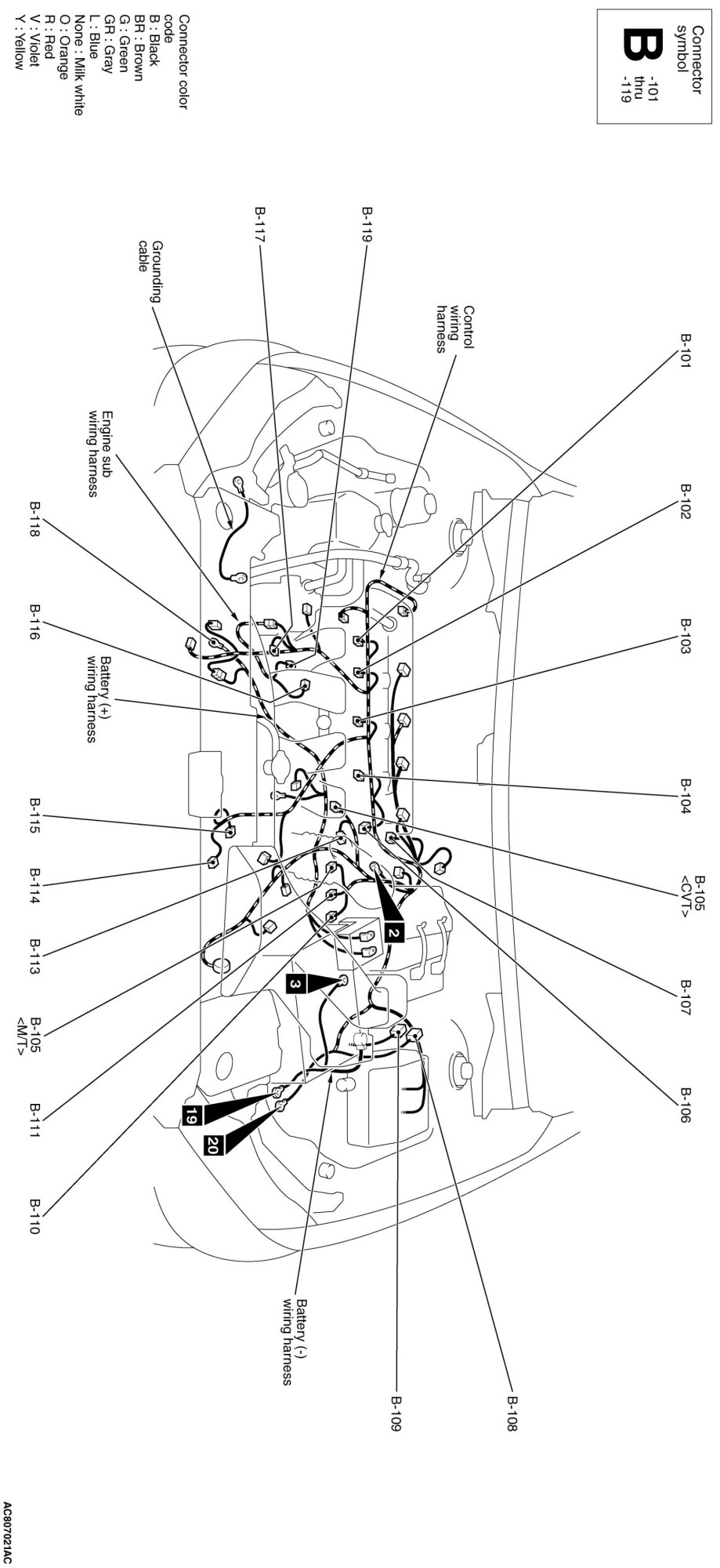

ENGINE AND TRANSAXLE [NON-TURBO]
