Amplifier: Service and Repair

REMOVAL AND INSTALLATION

CAUTION:
To remove the front seat assembly of vehicle with side air bag, refer to Service Precautions Technician Safety Information and Air Bag Module(S) And Clock Spring Removal and Installation (Except Ralliart) Removal and Installation (Ralliart).

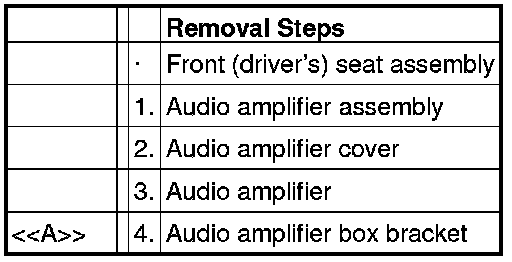

REMOVAL SERVICE POINT

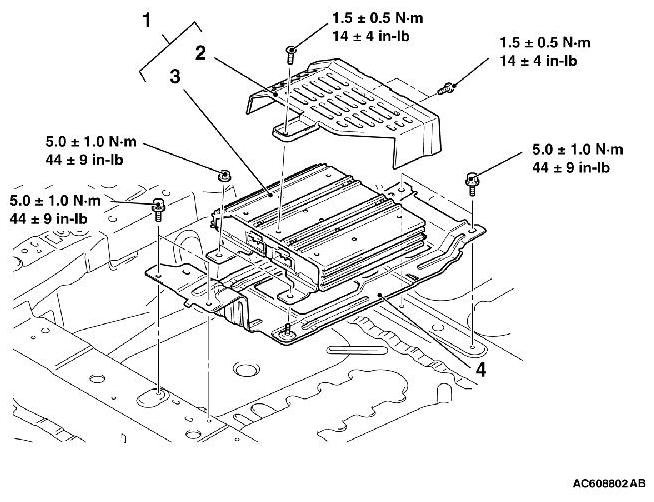

[[A]] REMOVAL OF AUDIO AMPLIFIER BOX BRACKET

Turn up and remove the carpet.
