Inspection Procedure 1
Inspection Procedure 1: Noise, VibrationDIAGNOSIS PROCEDURE
STEP 1. Check the idle speed.
Q:Does the idle speed meet the standard values?
YES : Go to Step 2 .
NO : Refer to [2.0L engine], On-vehicle Service - Idle Speed Check Testing and Inspection or [2.4L engine], On-vehicle Service - Idle Speed Check. Testing and Inspection
STEP 2. Check whether the transaxle and engine mount is loose or damaged.
Q:Are the transaxle and engine mount loose or damaged?
YES : Tighten or replace the part. Then go to Step 7.
NO : Go to Step 3.

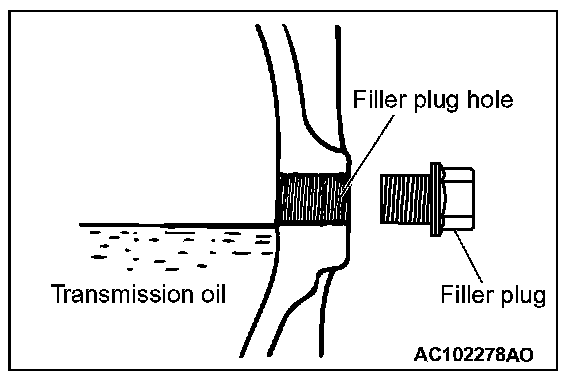

STEP 3. Check that the oil level is up to the lower edge of the filler plug hole.
Q:Is the oil level up to the lower edge of the filler plug hole?
YES : Go to Step 4 .
NO : Refill DiaQueen NEW MULTI GEAR OIL API classification GL-3, SAE 75W-80. Then go to Step 7.
STEP 4. Check for the specified oil.
Q:Is the specified oil DiaQueen NEW MULTI GEAR OIL API classification GL-3, SAE 75W-80?
YES : Go to Step 5.
NO : If in doubt, replace the oil. Then go to Step 7.
STEP 5. Remove the transaxle. Check the axial play of the input and output shafts.
Q:Does the axial play of the input and output shafts meet the standard value?
YES : Go to Step 6.
NO : Adjust the axial play of the input and output shafts. Then go to Step 7.
STEP 6. Disassemble the transaxle. Check the gears for wear and damage.
Q:Are the gears worn or damaged?
YES : Replace the gears. Go to Step 7.
NO : Go to Step 7.
STEP 7. Retest the systems.
Q:Is the noise or vibration still there?
YES : Return to Step 1.
NO : The procedure is complete.
