Bell Crank Disassembly and Assembly

BELLCRANK

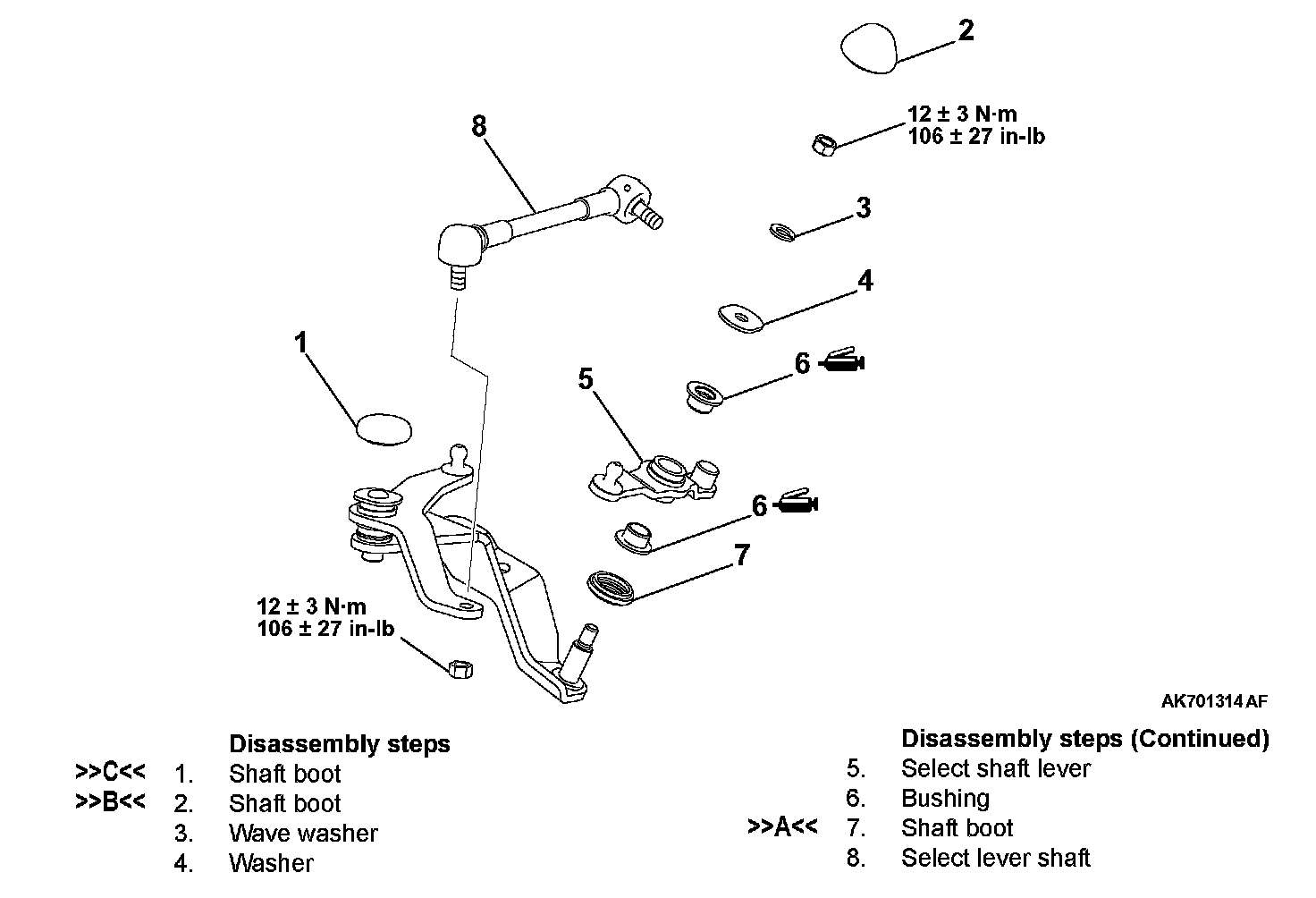

BELLCRANK DISASSEMBLY AND ASSEMBLY





ASSEMBLY SERVICE POINTS

]]A[[ SHAFT BOOT INSTALLATION

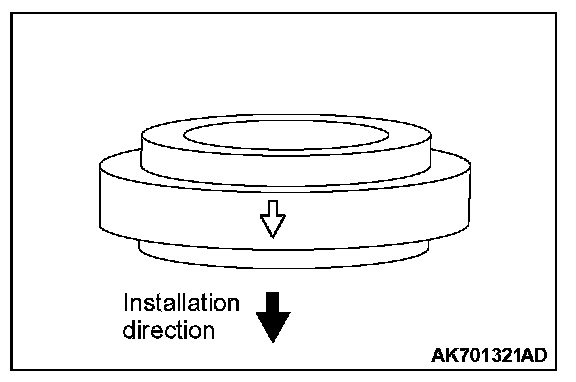

Install the shaft boot so that the stamp can be oriented as shown in the illustration.

]]B[[ SHAFT BOOT INSTALLATION

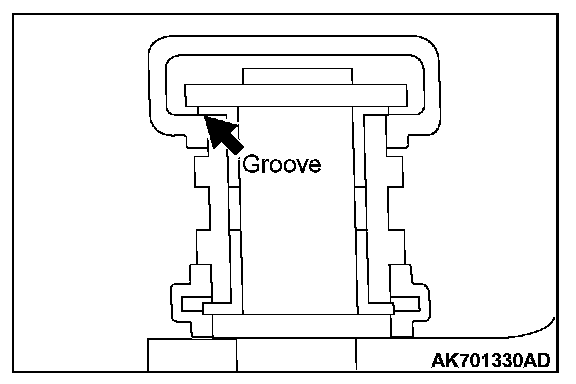

Fit the shaft boot into the groove.

]]C[[ SHAFT BOOT INSTALLATION

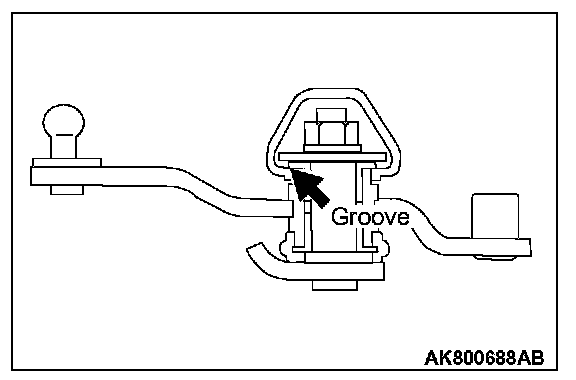

Fit the shaft boot into the groove.
