Shifter CVT: Service and Repair

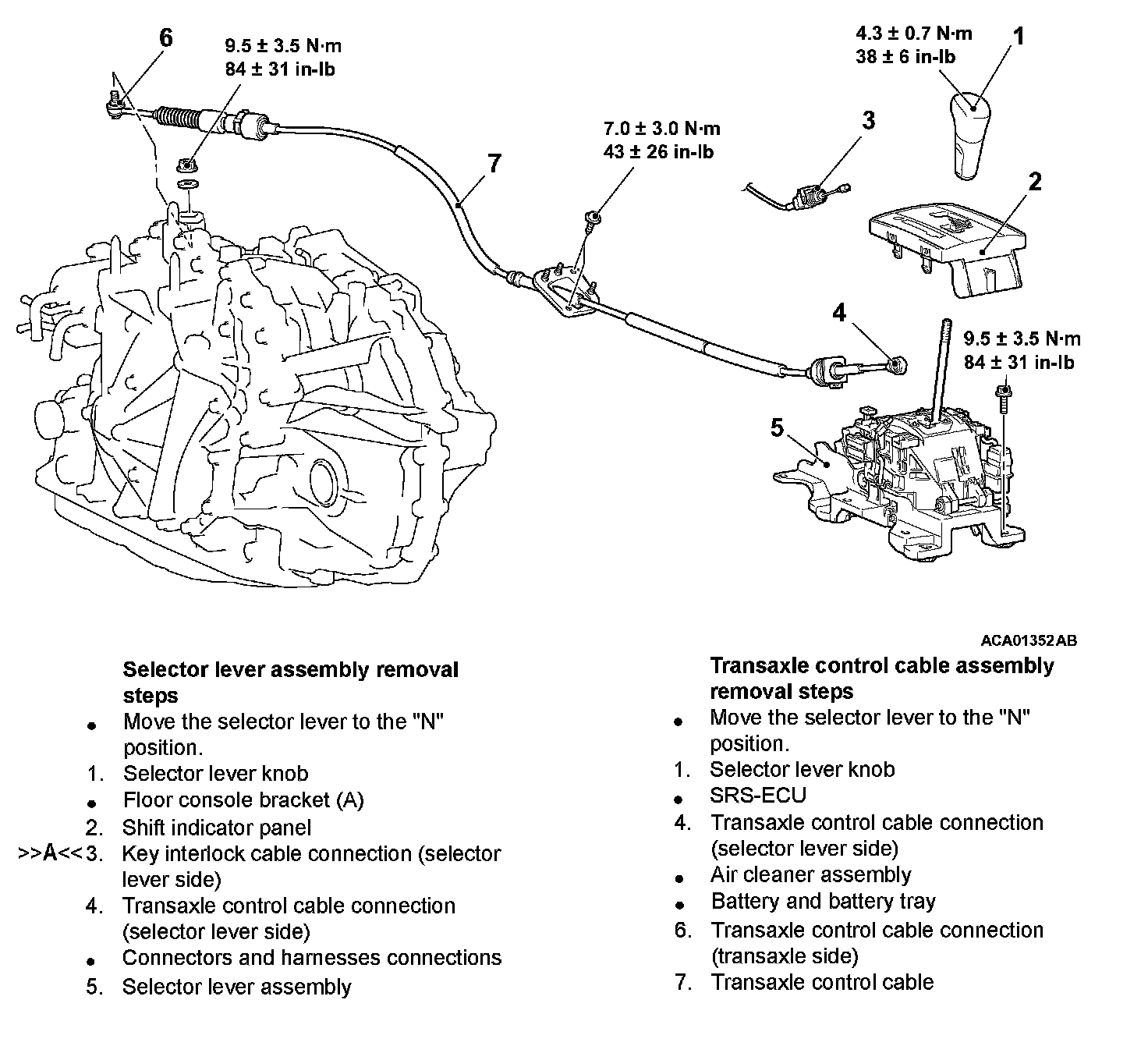

TRANSAXLE CONTROL

REMOVAL AND INSTALLATION

WARNING
Be careful not to subject the SRS-ECU to any shocks during removal and installation of the transaxle control cable assembly.








INSTALLATION SERVICE POINTS

]]A[[ KEY INTERLOCK CABLE INSTALLATION

CAUTION
Leave the ignition switch in the "LOCK" (OFF) position until the key interlock cable installation is completed.

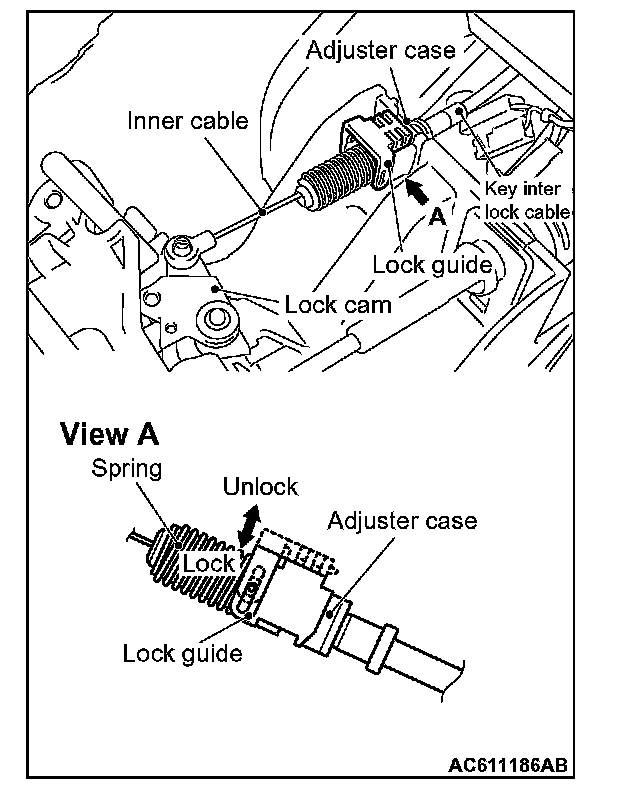

1. Move the selector lever to the "P" position and turn the ignition switch to the "LOCK" (OFF) position.





2. Install the tip of the key interlock cable to the lock cam of the selector lever assembly, taking care not to twist the inner cable.
3. Install the adjuster case with its lock guide pulled up (unlocked).
4. Securely push down the lock guide to lock it.

NOTE: The lock position of the key interlock cable is automatically adjusted by a spring.
