Hydraulic Hose: Service and Repair

CLUTCH CONTROL

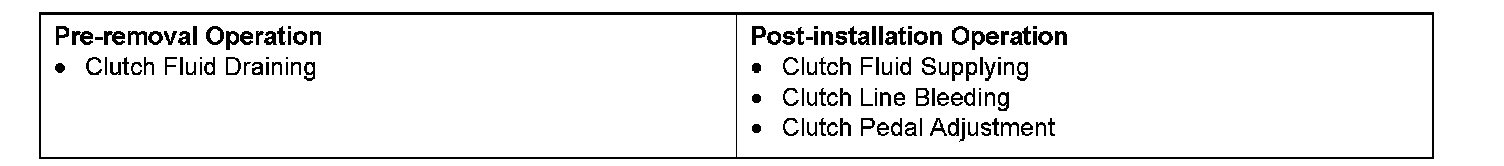

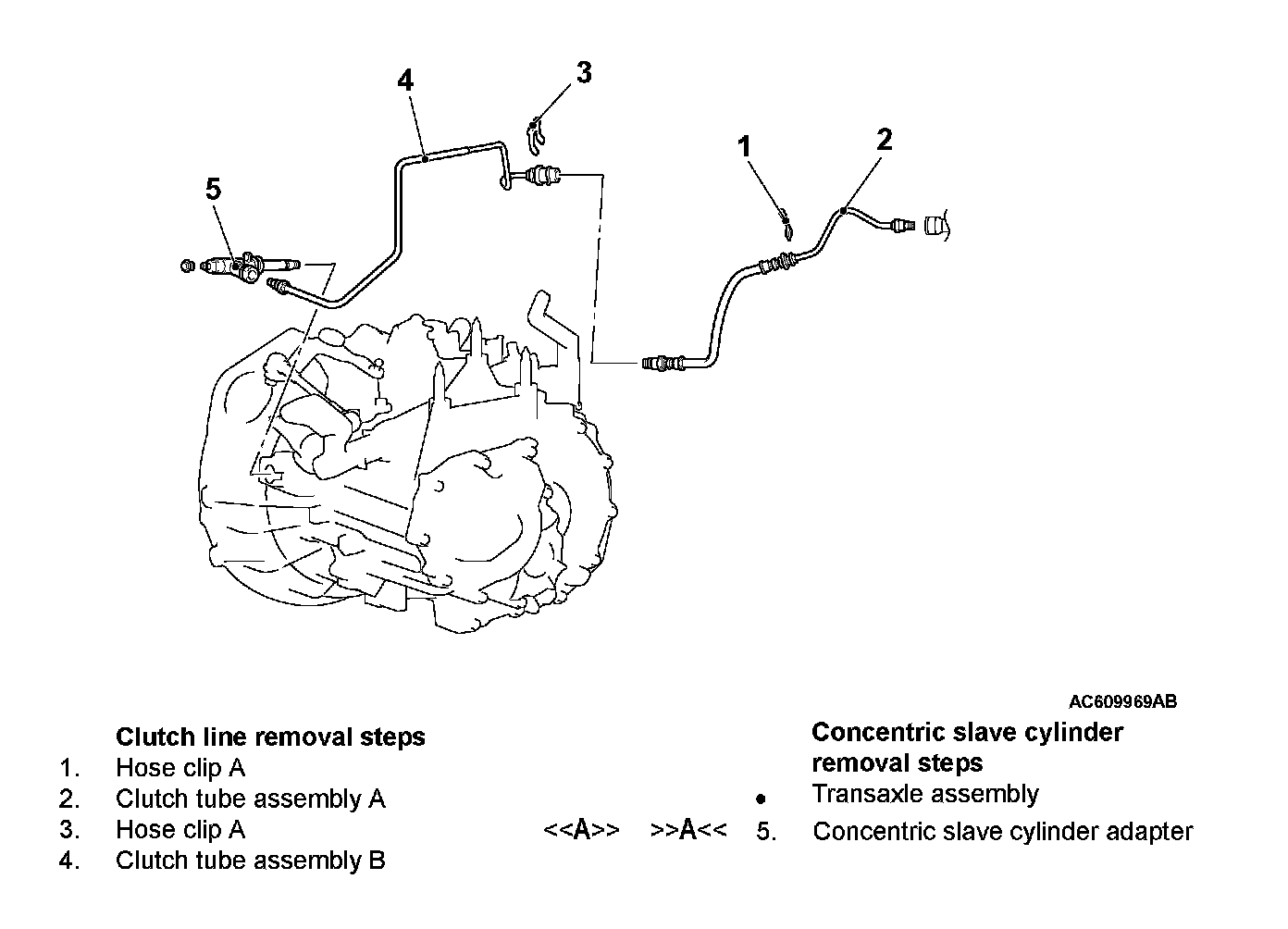

REMOVAL AND INSTALLATION








REMOVAL SERVICE POINT

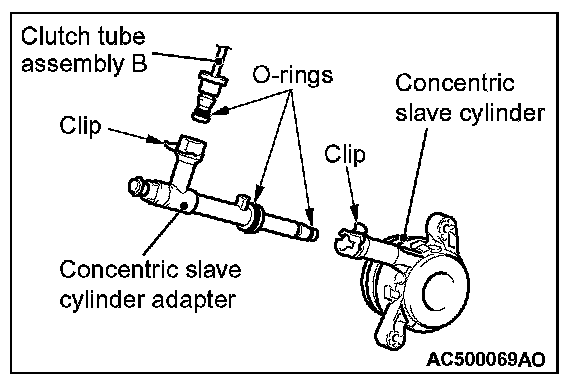

[[A]] CLUTCH TUBE ASSEMBLY DISCONNECTION/CONCENTRIC SLAVE CYLINDER ADAPTER REMOVAL

CAUTION

^ Do not remove the O-rings and the clips from the clutch tube assembly, the clutch master cylinder, the concentric slave cylinder adapter and the concentric slave cylinder.
^ If the O-rings or the clips of the clutch tube assembly, the clutch master cylinder, the concentric slave cylinder adapter and the concentric slave cylinder are damaged, replace each assembly.








INSTALLATION SERVICE POINT

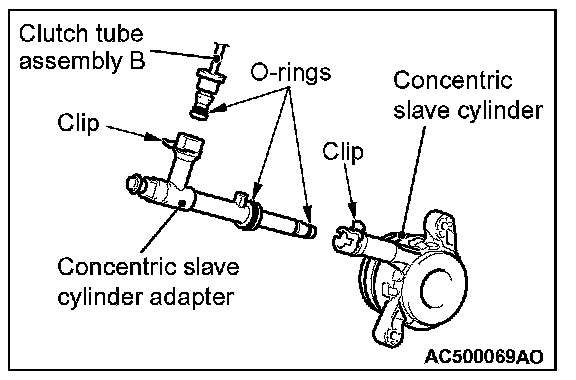

]]A[[ CONCENTRIC SLAVE CYLINDER ADAPTER/CLUTCH TUBE ASSEMBLY CONNECTION

CAUTION

^ When connecting each part, check that the O-ring and clip are not damaged.
^ If any connection area or O-ring is dirty, clean with the clutch fluid.

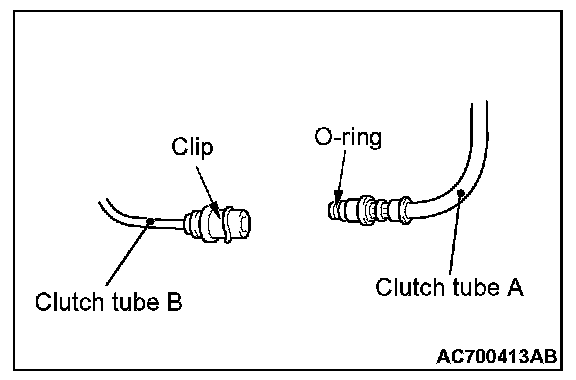

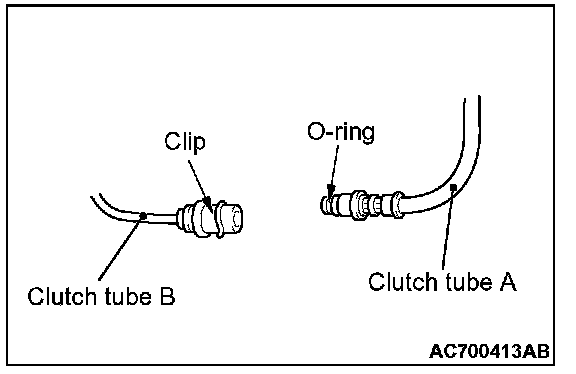

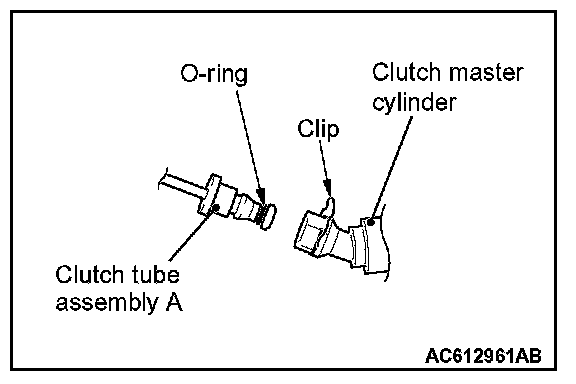

Assemble the clip to the clutch master cylinder, clutch tube assembly B, and concentric slave cylinder. Then, connect the clutch tube assembly A and concentric slave cylinder adapter.
