Fuel Injector Relay: Testing and Inspection

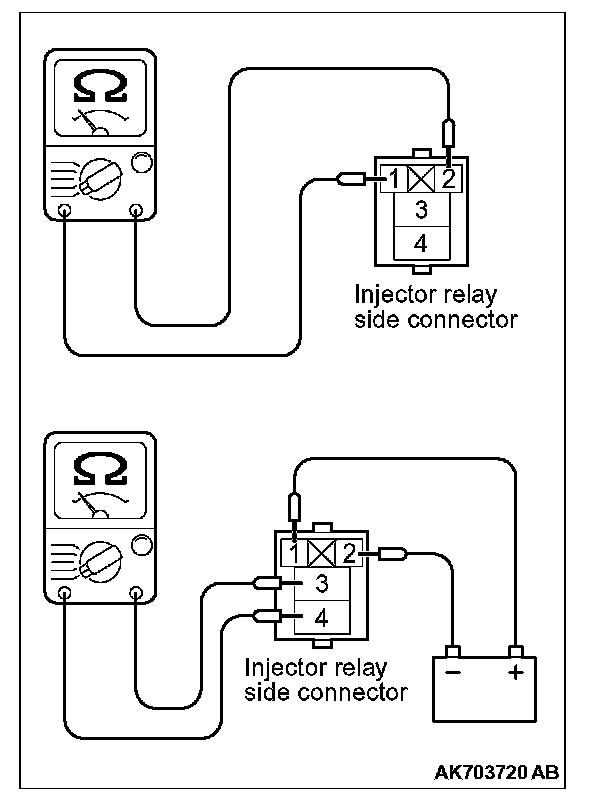

INJECTOR RELAY CONTINUITY CHECK

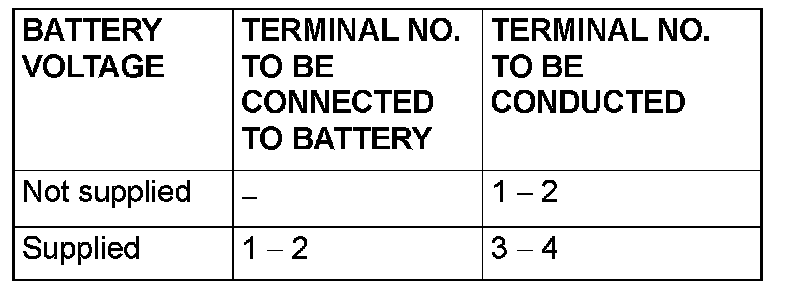

Inspect the injector relay for continuity in accordance with the chart shown below.
