Transaxle (Transmission) Mounting Removal and Installation

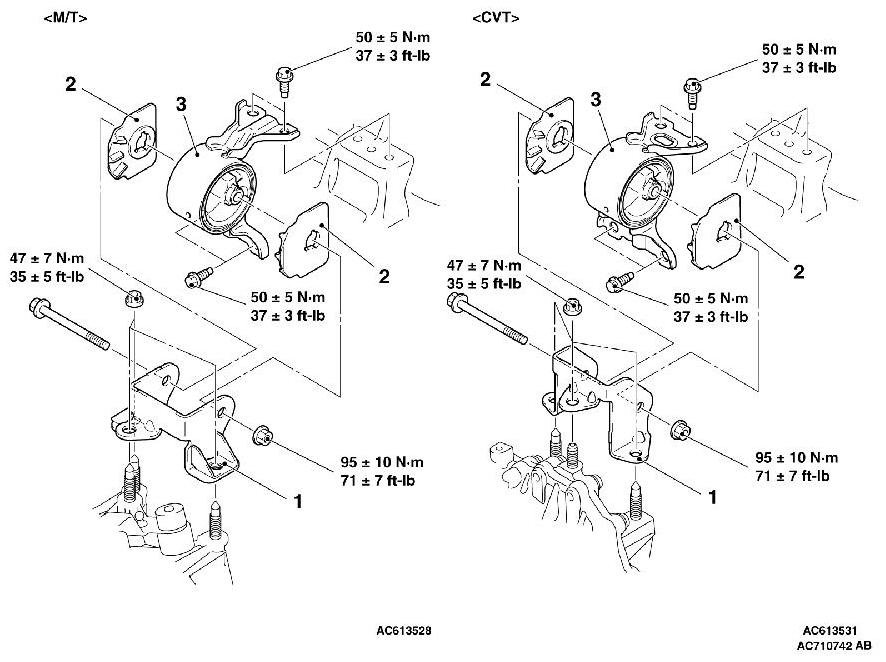

REMOVAL AND INSTALLATION [2.0L ENGINE NON-TURBO, 2.4L ENGINE]













REMOVAL SERVICE POINT

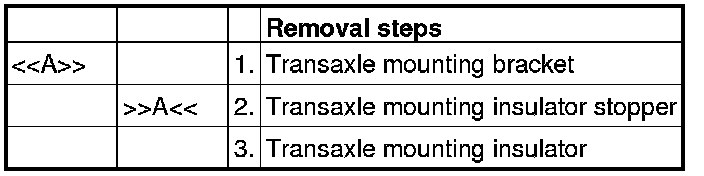

[[A]] TRANSAXLE MOUNTING BRACKET REMOVAL

1. Place a garage jack against the transaxle case with a piece of wood in between to support the engine and transaxle assembly.

2. Operate a garage jack so that the transaxle weight is not applied to the transaxle mounting insulator, and remove the transaxle mounting bracket.

INSTALLATION SERVICE POINT

]]A[[ TRANSAXLE MOUNTING INSULATOR STOPPER INSTALLATION

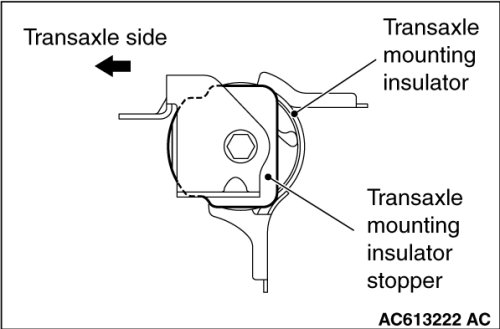

Install the transaxle mounting insulator stopper as shown in the figure.
