Paint: Application and ID

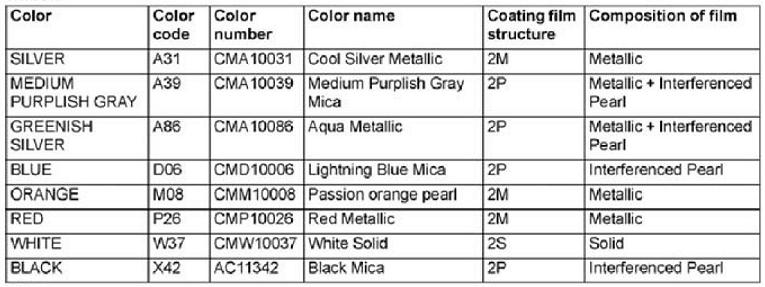

BODY COLOR CHARTS

Check the vehicle's body color code, and then use this body color chart to determine the refinishing paint supplier from which the color can be purchased.






NOTE:
- The coating film structure indicates top coating only (2S: 2 coat solid, 2M: 2 coat metalic, 2P: 2 coat pearl).
- For painting, inner panel colors should be similar to the outer panel colors.
- The Hood air outlet garnish is coated in dark warm grey (AC10895)
