Trunk / Liftgate Handle: Testing and Inspection

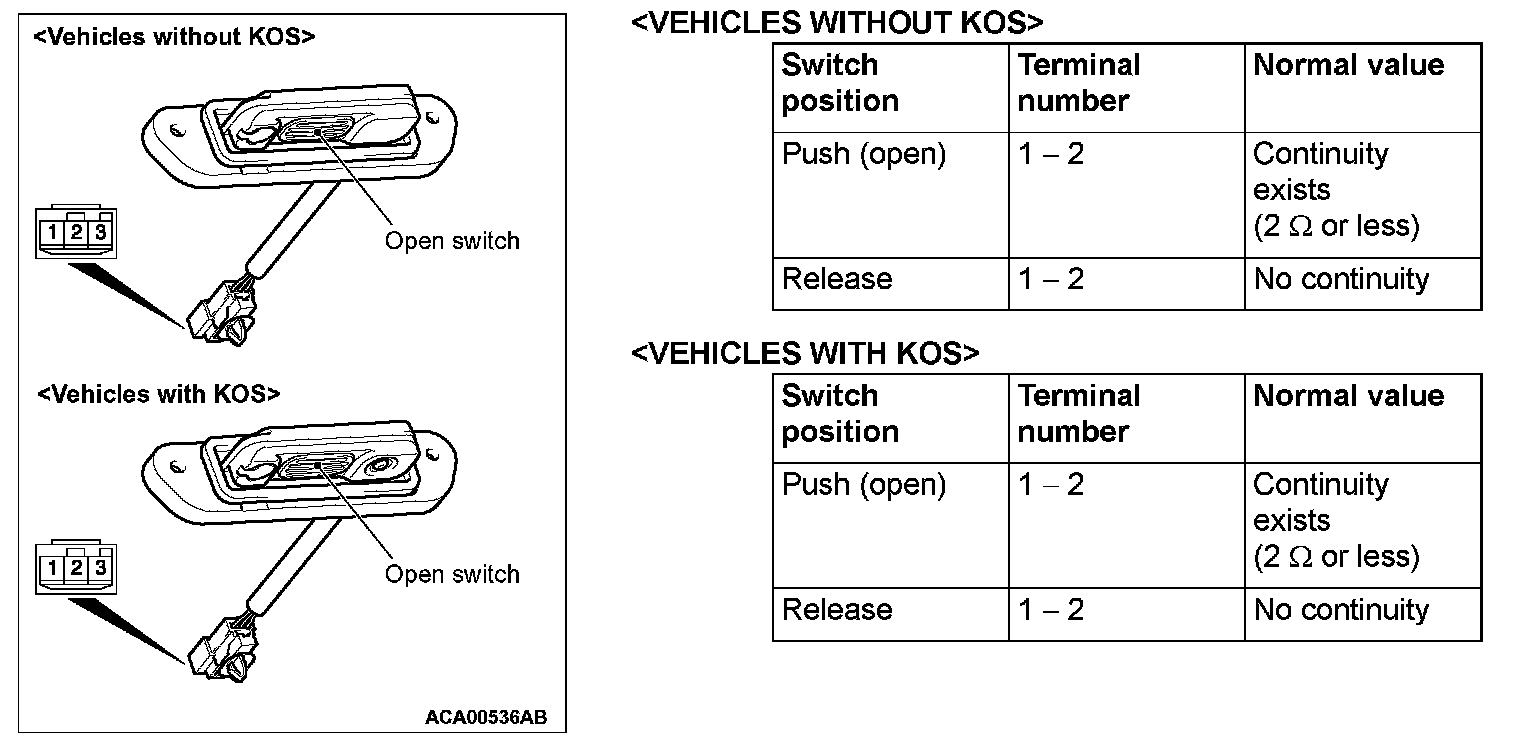

LIFTGATE LOCK RELEASE HANDLE (LIFTGATE OPEN SWITCH) CHECK

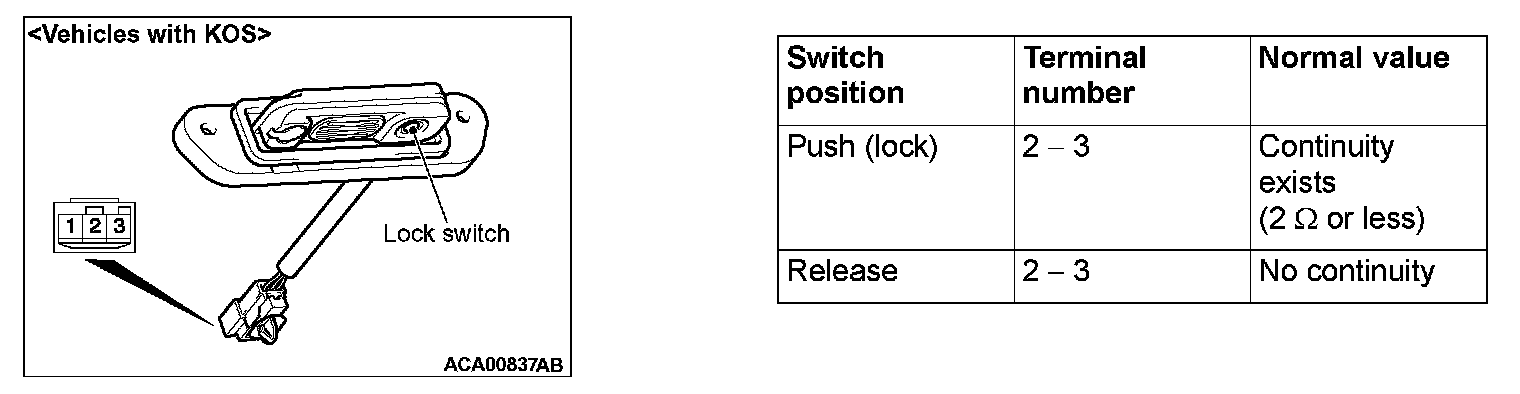

LIFTGATE LOCK RELEASE HANDLE (LIFTGATE LOCK SWITCH) CHECK [VEHICLES WITH KOS]
