Vehicles Without Theft-Alarm Sensor

GENERAL INFORMATION

[VEHICLES WITHOUT THEFT-ALARM SENSOR]

When the doors are locked using the keyless entry function or KOS (except when locked by using the key cylinder or door lock switch), the improper opening of door or liftgate causes the ETACS-ECU function and control to give off an alarm with the flashing of headlights and the intermittent sounding of horns [horn (HIGH, LOW) and theft-horn]. Also, the ETACS-ECU warns that the theft-alarm system is being set by flashing the theft-alarm indicator.

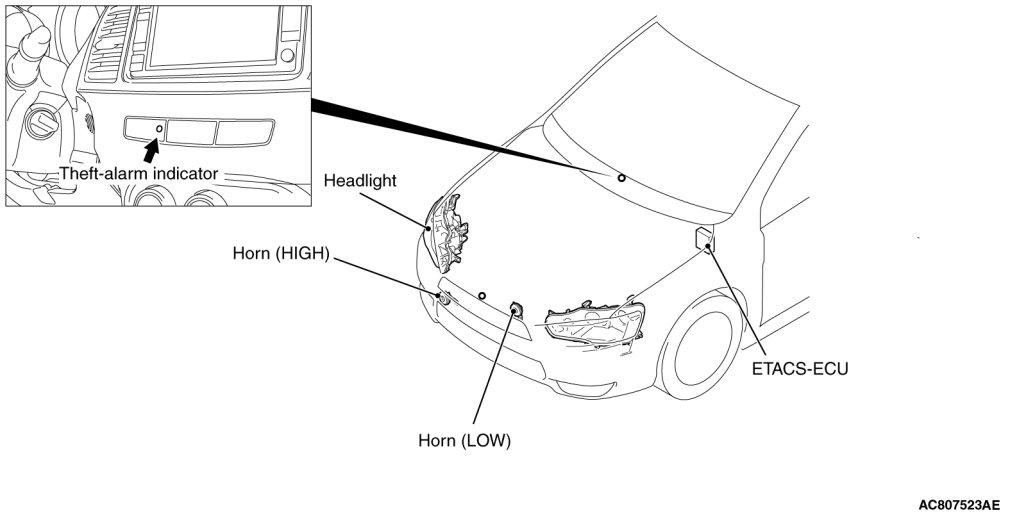

CONSTRUCTION DIAGRAM
