P1247

DTC P1247: CVT Plausibility [CVT]

TECHNICAL DESCRIPTION
Checks for an abnormal signal of TCM.

DTC SET CONDITIONS

Check Condition
- Ignition switch is "ON" position.

Judgment Criterion
- A torque demand signal from TCM is not normal.

FAIL-SAFE AND BACKUP FUNCTION
- Torque requested by TCM is ignored.

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- CVT system failed.
- ECM failed.

DIAGNOSIS

Required Special Tool:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A

STEP 1. Using scan tool MB991958, read the diagnostic trouble code (DTC).







CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

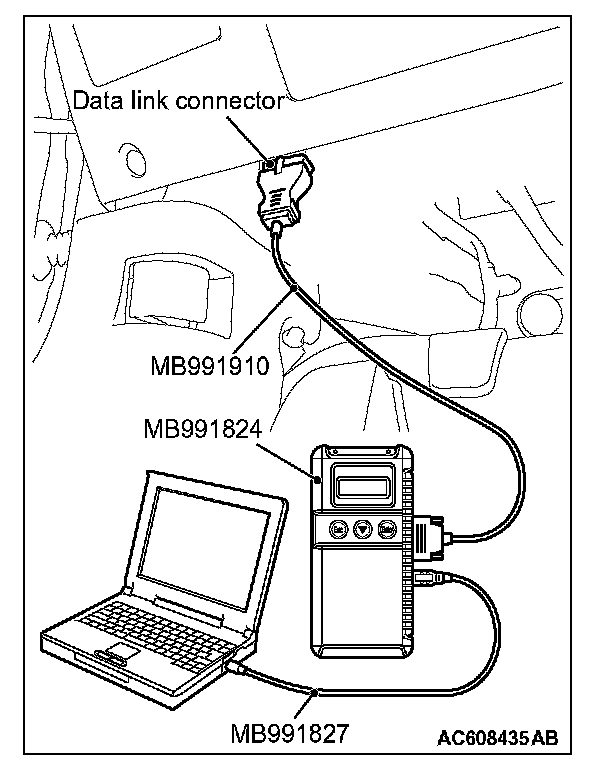

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Read the CVT-DTC.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is CVT-DTC set?

YES : Refer to Diagnosis - Diagnosis Code Chart. Continuously Variable Transaxle (CVT)

NO : Go to Step 2.

STEP 2. Using scan tool MB991958, read the diagnostic trouble code (DTC).

1. Turn the ignition switch to the "ON" position.
2. Read the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the diagnostic trouble code other than P1247 set?

YES : Refer to, Diagnostic Trouble Code Chart. Multiport Fuel Injection (MFI)

NO : Go to Step 3.

STEP 3. Using scan tool MB991958, read the diagnostic trouble code (DTC).

1. Turn the ignition switch to the "ON" position.
2. After the DTC has been deleted, read the DTC again.
3. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC P1247 set?

YES : Replace the ECM.

NO : It can be assumed that this malfunction is intermittent. Refer to How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions. Troubleshooting Contents
