Multiport Fuel Injection (MFI)

DTC P0630: Vehicle Identification Number (VIN) Malfunction

TECHNICAL DESCRIPTION
- The Vehicle Identification Number (VIN) is stored in the ECM by the vehicle manufacturer.

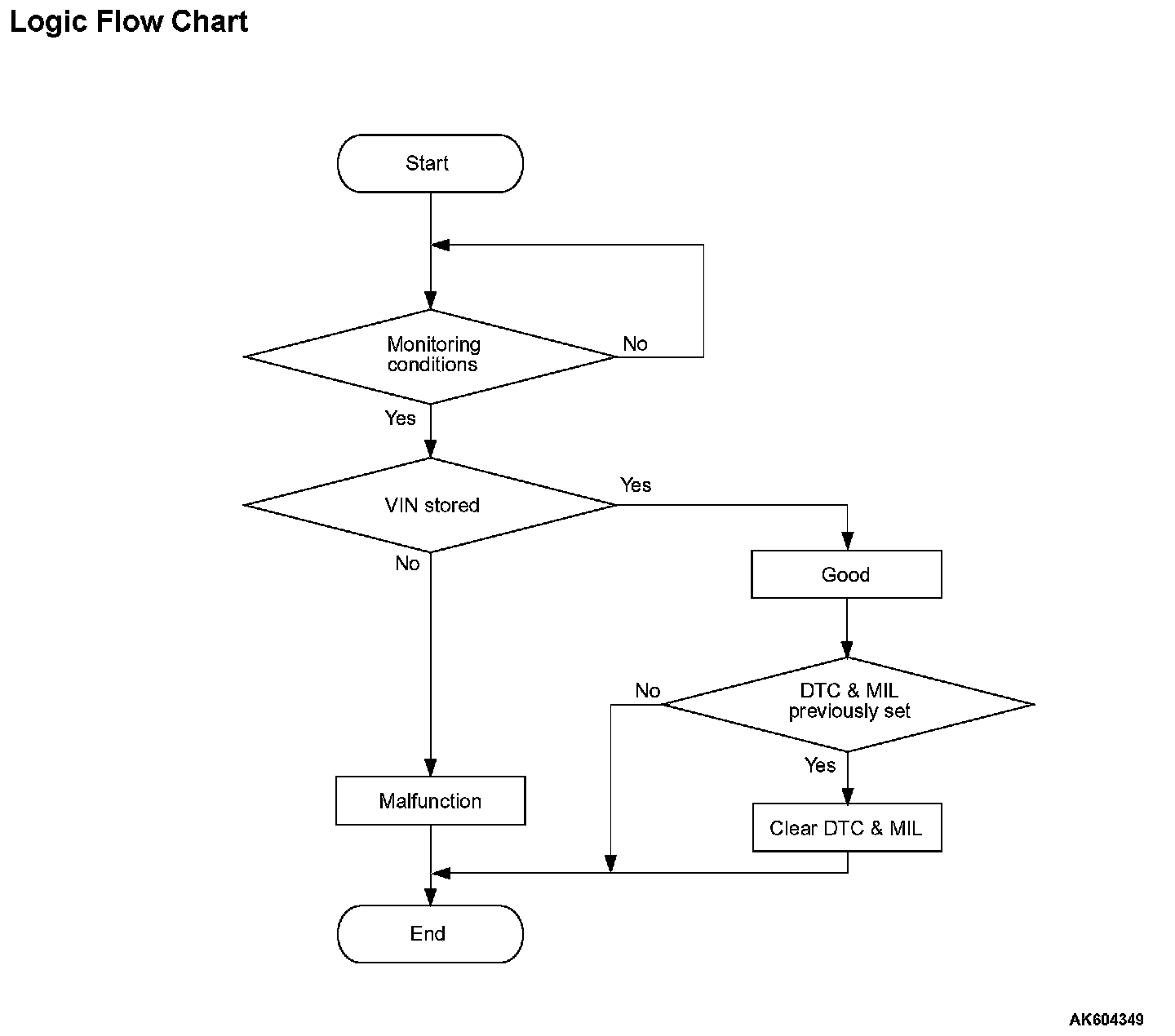

DESCRIPTIONS OF MONITOR METHODS
The ECM checks whether the VIN is being entered or not.

MONITOR EXECUTION
Continuous

MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- Not applicable

Sensor (The sensor below is determined to be normal)
- Not applicable

DTC SET CONDITIONS







Check Condition
- Ignition switch is "ON" position.

Judgement Criterion
- VIN (current) is not written.

FAIL-SAFE AND BACKUP FUNCTION
- None

OBD-II DRIVE CYCLE PATTERN
None.

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- ECM failed.

DIAGNOSIS

Required Special Tool:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A

STEP 1. Using scan tool MB991958, check VIN Information.







CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991958 to the coding mode for VIN Information.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Has VIN (current) been written?

YES : Go to Step 2.

NO : Write VIN. Then go to Step 3.

STEP 2. Using scan tool MB991958, read the diagnostic trouble code (DTC).

1. Turn the ignition switch to the "ON" position.
2. After the DTC has been deleted, read the DTC again.
3. Turn the ignition switch to the "LOOK" (OFF) position.

Q: Is DTC P0630 set?

YES : Replace the ECM.

NO : It can be assumed that this malfunction is intermittent. Refer to How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions. Troubleshooting Contents

STEP 3. Using scan tool MB991958, read the diagnostic trouble code (DTC).

1. Turn the ignition switch to the "ON" position.
2. After the DTC has been deleted, read the DTC again.
3. Turn the ignition switch to the "LOOK" (OFF) position.

Q: Is DTC P0630 set?

YES : Replace the ECM.

NO : The inspection is complete.
