Flywheel: Specifications




Flywheel

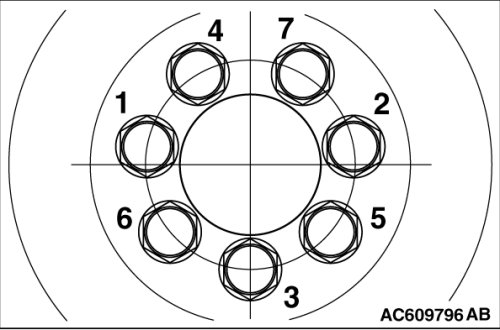

Tighten in the order shown in the illustration
First Step 40 Nm (30 ft-lb)
Second Step 130 Nm (96 ft-lb)
