Propeller Shaft Runout




INSPECTION

PROPELLER SHAFT RUNOUT

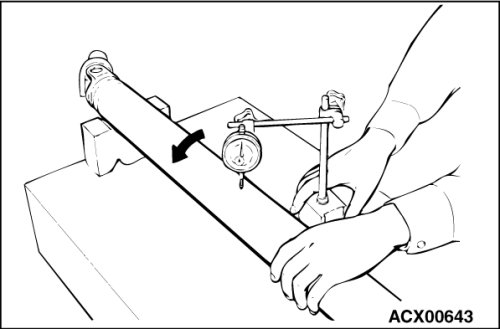

Check the deflection of the front, center and rear shafts.
Limit: 0.5 mm (0.02 inch)
