Drive/Propeller Shaft: Application and ID

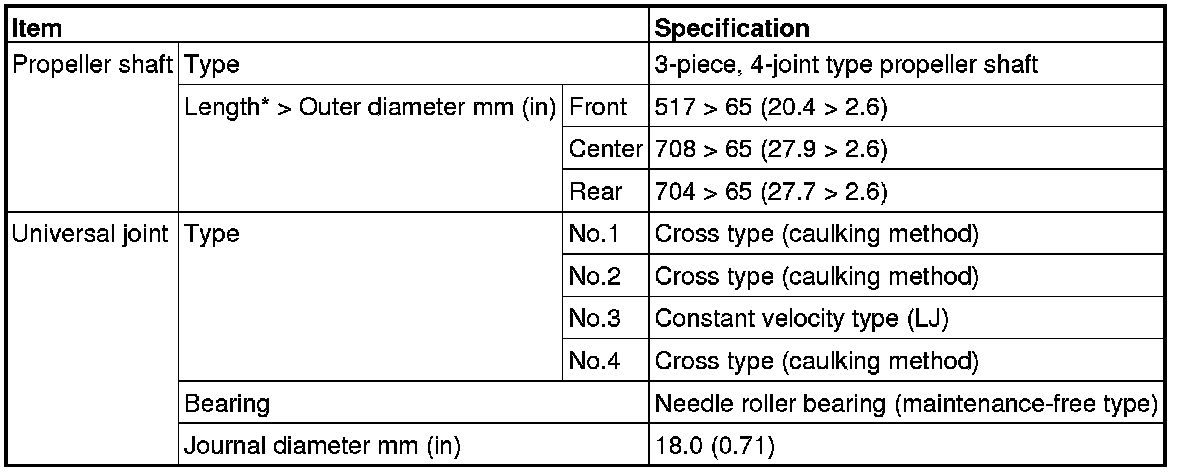

GENERAL SPECIFICATIONS





NOTE:
*: Indicates the distance between each joint center.
