Home >> Mitsubishi >> 2011 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Tools and Equipment >> Rear Axle

Rear Axle

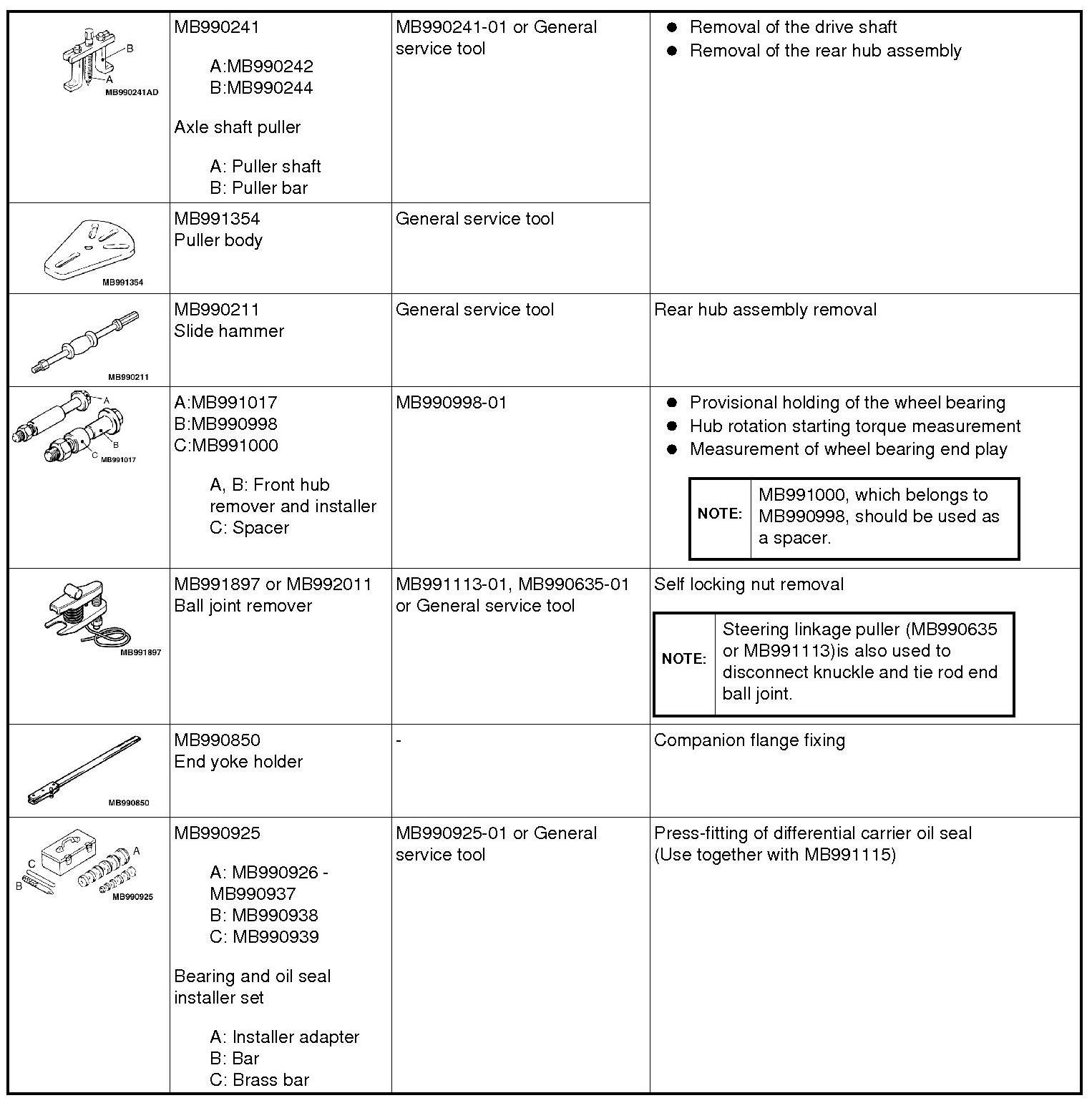

SPECIAL TOOL

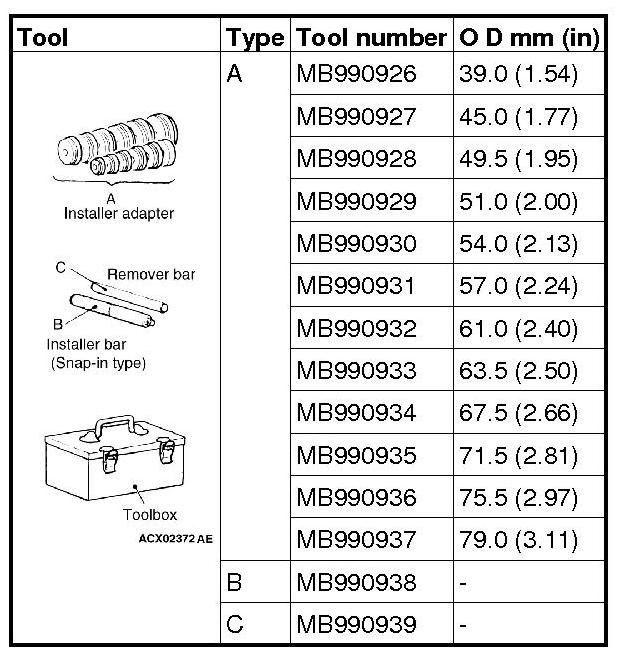

MB990925 BEARING AND OIL SEAL INSTALLER SET
