Front Axle

HUB BOLT REPLACEMENT

Required Special Tools:

- MB990767: Front Hub and Flange Yoke Holder
- MB991618: Hub Bolt Remover

1. Remove the front caliper assembly and front disk brake, and retain the front caliper assembly with a wire and the like to prevent from falling (Refer to Service and Repair).

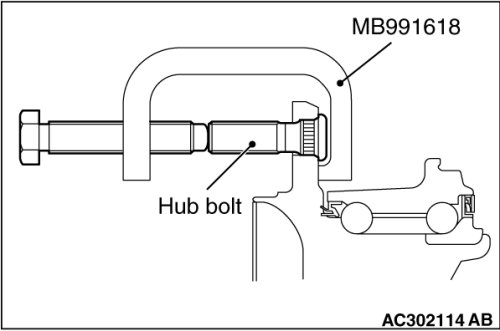

2. Use special tool MB991618 to remove the hub bolts.

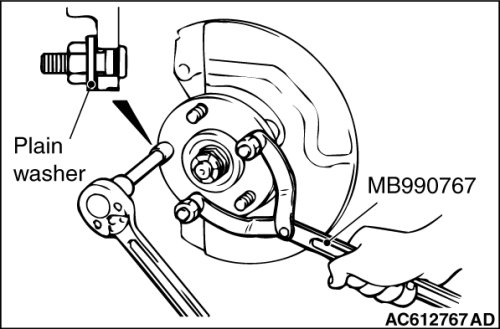

3. Install the plain washer to the new hub bolt, and install the bolt with a nut while holding the hub with special tool MB990767.
4. Install the front brake disk and the front caliper assembly (Refer to Service and Repair).
