Removal and Replacement

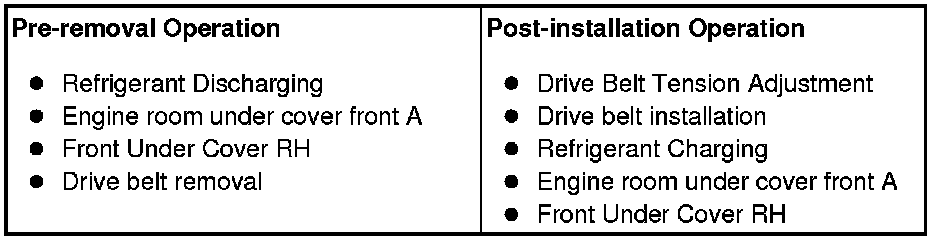

REMOVAL AND INSTALLATION
NOTE:
The service points which are not described are the same as before.

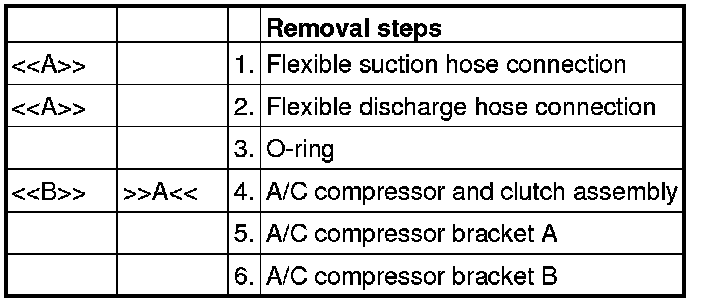

REMOVAL SERVICE POINTS
[[A]] FLEXIBLE DISCHARGE HOSE / FLEXIBLE SUCTION HOSE DISCONNECTION
CAUTION:
As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.
To prevent the entry of dust or other foreign bodies, plug the dismantled hoses and compressor nipples.
[[B]] A/C COMPRESSOR REMOVAL
Take care not to spill any compressor oil when removing the compressor.
INSTALLATION SERVICE POINT
]]A[[ A/C COMPRESSOR AND CLUTCH ASSEMBLY INSTALLATION
If a new compressor is installed, first adjust the amount of oil according to the procedures described below, and then install the compressor.
1. Measure the amount [X cm3 (X fl.oz) of oil within the removed compressor.
2. Drain (from the new compressor) the amount of oil calculated according to the following formula, and then install the new compressor.
New compressor oil amount = 70cm3(2.4 fl.oz)
70 cm3 - X cm3 = Y cm3 (2.4 fl.oz. - X fl.oz. = Y fl.oz)
NOTE:
Y cm3 (Y fl.oz) indicates the amount of oil in the refrigerant line, the condenser, the evaporator, etc.
NOTE:
When replacing the following parts at the same times as the compressor, subtract the rated oil amount of each part from Y cm3 (Y fl.oz) and discharge from the new compressor.

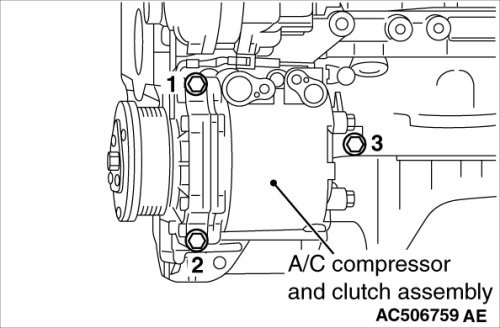

3. Tighten A/C compressor and clutch assembly mounting bolts to the specified torque in the order of number shown in the figure.
Tightening torque: 23± 6Nm
