Transaxle (Transmission) Mounting Removal and Installation

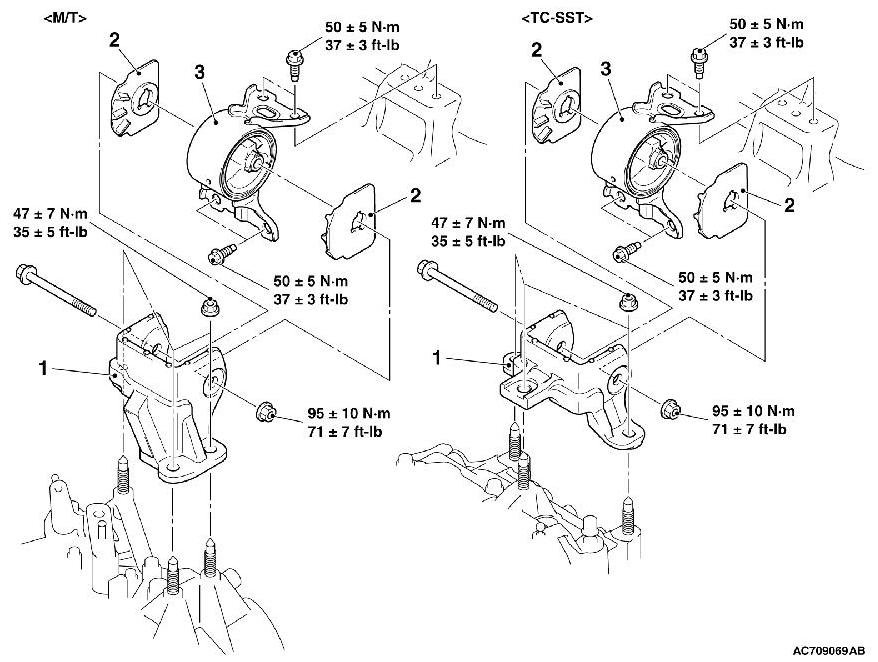

REMOVAL AND INSTALLATION

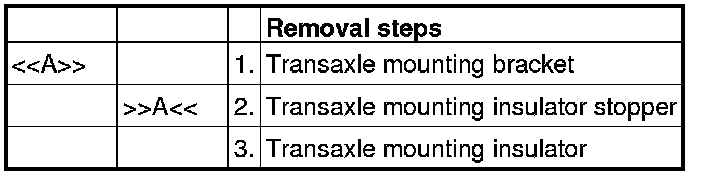

REMOVAL SERVICE POINT

[[A]] TRANSAXLE MOUNTING BRACKET REMOVAL

1. Place a garage jack against the transaxle case with a piece of wood in between, and support the engine and transaxle assembly.

2. Operate the garage jack so that the engine and transaxle assembly weight is not applied to the transaxle mounting insulator, and then remove the transaxle mounting bracket.

INSTALLATION SERVICE POINT

]]A[[ TRANSAXLE MOUNTING INSULATOR STOPPER INSTALLATION

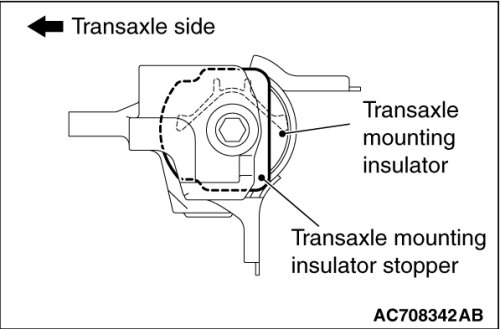

Install the transaxle mounting insulator stopper as shown in the figure.
