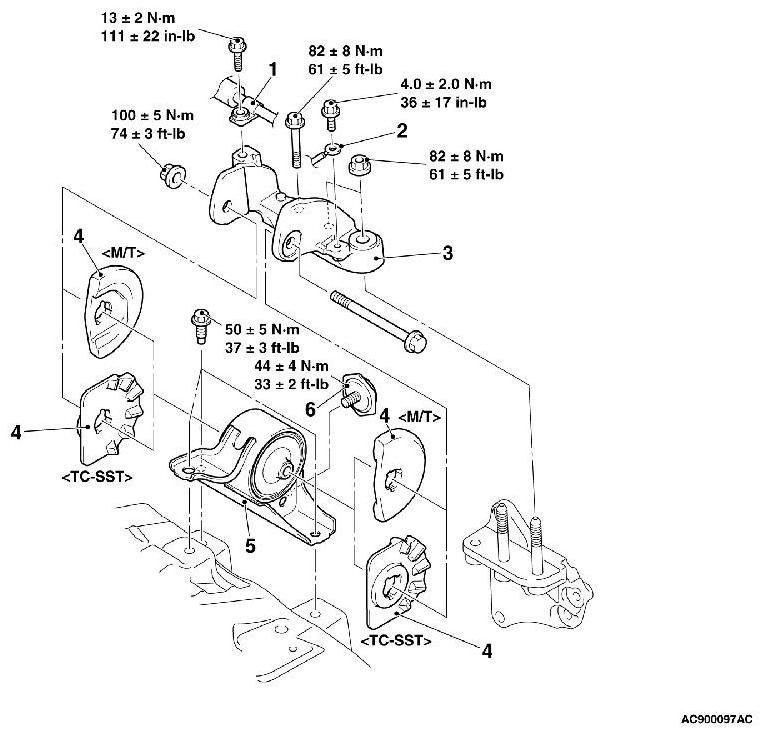

Engine Mounting Removal and Installation

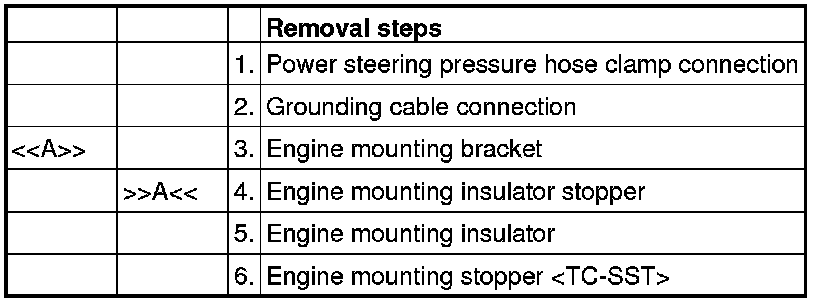

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINT

[[A]] ENGINE MOUNTING BRACKET REMOVAL

1.
CAUTION:
When supporting the engine and transaxle assembly by using the garage jack, pay attention not to deform the engine oil pan.

Place a garage jack against the engine oil pan with a piece of wood in between, and support the engine and transaxle assembly.

2. Operate the garage jack so that the engine and transaxle assembly weight is not applied to the engine mounting insulator, and then remove the engine mounting bracket.

INSTALLATION SERVICE POINT

]]A[[ ENGINE MOUNTING INSULATOR STOPPER INSTALLATION

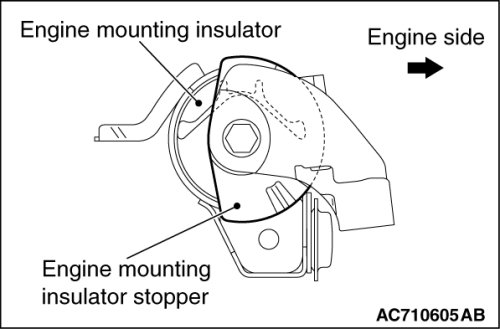

Install the engine mounting insulator stopper as shown in the figure.
